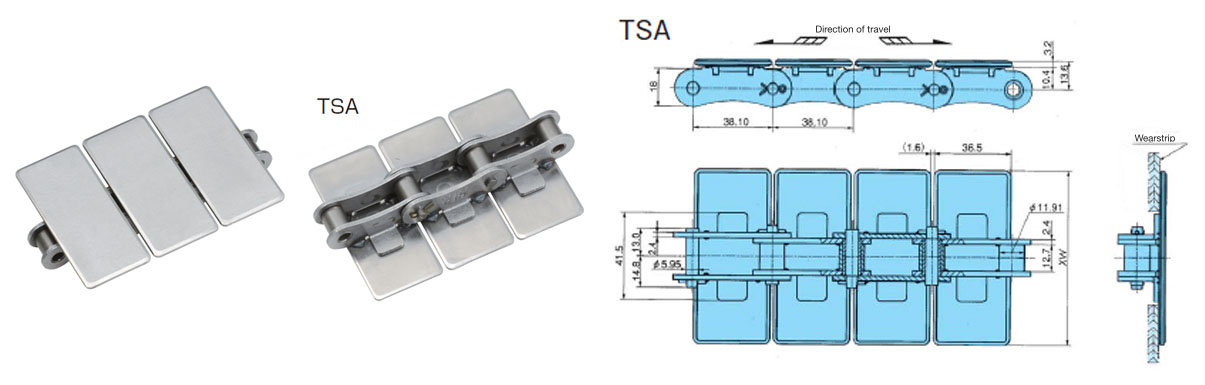

Stainless steel Top chain TSA type Major Specifications
TSA
Features
- A conveyor chain with plates attached to double pitch chain. double pitch chain sprockets can be used.
- ・ NP Series, Lambda and SS Series are also available for the main chain.
- - There are various specifications available, such as a hardened plate that improves the wear resistance of the plate, and a hard chrome plated + buffed plate on the top surface of the plate, allowing you to select the type that best suits your workpiece and the environment.
[Click to enlarge]
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Catalogs and Instruction Manuals
Major Specifications, price, delivery
| chain pitch mm |
Specification | Model | top Plate Width XW mm |
Maximum allowable load kN |
Estimated mass kg/m |
Operating temperature range °C |
ability Line diagram |
1 unit Tori Number of links |
|---|---|---|---|---|---|---|---|---|
| 38.1 | Standard Series | TSA550 | 55.0 | 2.94 | 2.8 | -10～150 | Allowable load graph Show |
80 |
| TSA635 | 63.5 | 3.0 | ||||||
| TSA762 | 76.2 | 3.3 | ||||||
| TSA826 | 82.6 | 3.5 | ||||||
| TSA950 | 95.0 | 3.8 | ||||||
| TSA1016 | 101.6 | 4.0 | ||||||
| TSA1100 | 110.0 | 4.2 | ||||||
| TSA1143 | 114.3 | 4.3 | ||||||
| TSA1270 | 127.0 | 4.6 | ||||||
| TSA1524 | 152.4 | 5.2 | ||||||
| TSA1905 | 190.5 | 6.1 | ||||||
| 38.1 | NP Series | TSA550-NP | 55.0 | 2.94 | 2.8 | -10～150 | Allowable load graph Show |
80 |
| TSA635-NP | 63.5 | 3.0 | ||||||
| TSA762-NP | 76.2 | 3.3 | ||||||
| TSA826-NP | 82.6 | 3.5 | ||||||
| TSA950-NP | 95.0 | 3.8 | ||||||
| TSA1016-NP | 101.6 | 4.0 | ||||||
| TSA1100-NP | 110.0 | 4.2 | ||||||
| TSA1143-NP | 114.3 | 4.3 | ||||||
| TSA1270-NP | 127.0 | 4.6 | ||||||
| TSA1524-NP | 152.4 | 5.2 | ||||||
| TSA1905-NP | 190.5 | 6.1 | ||||||
| 38.1 | Lambda Specification | TSA550-LMCNP | 55.0 | 2.94 | 2.8 | -10～150 | Allowable load graph Show |
80 |
| TSA635-LMCNP | 63.5 | 3.0 | ||||||
| TSA762-LMCNP | 76.2 | 3.3 | ||||||
| TSA826-LMCNP | 82.6 | 3.5 | ||||||
| TSA950-LMCNP | 95.0 | 3.8 | ||||||
| TSA1016-LMCNP | 101.6 | 4.0 | ||||||
| TSA1100-LMCNP | 110.0 | 4.2 | ||||||
| TSA1143-LMCNP | 114.3 | 4.3 | ||||||
| TSA1270-LMCNP | 127.0 | 4.6 | ||||||
| TSA1524-LMCNP | 152.4 | 5.2 | ||||||
| TSA1905-LMCNP | 190.5 | 6.1 | ||||||
| 38.1 | SS Series | TSA550-SS | 55.0 | 1.03 | 2.8 | -20～400 | Allowable load graph Show |
80 |
| TSA635-SS | 63.5 | 3.0 | ||||||
| TSA762-SS | 76.2 | 3.3 | ||||||
| TSA826-SS | 82.6 | 3.5 | ||||||
| TSA950-SS | 95.0 | 3.8 | ||||||
| TSA1016-SS | 101.6 | 4.0 | ||||||
| TSA1100-SS | 110.0 | 4.2 | ||||||
| TSA1143-SS | 114.3 | 4.3 | ||||||
| TSA1270-SS | 127.0 | 4.6 | ||||||
| TSA1524-SS | 152.4 | 5.2 | ||||||
| TSA1905-SS | 190.5 | 6.1 |
Note
1. The plate shape of SS Series is slightly different from other specifications.

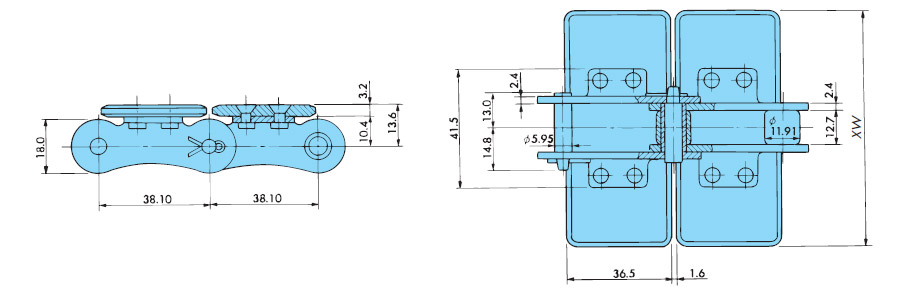

HTP type
[Click to enlarge]
[Click to enlarge]
| chain pitch kg/m |
Specification | Model | top Plate Width XW mm |
Maximum allowable load kN |
Estimated mass kg/m |
Operating temperature range °C |
ability Line diagram |
1 unit Tori Number of links |
|---|---|---|---|---|---|---|---|---|
| 38.10 | HTP type | TSA550-HTP | 55.0 | - | - | - | - | - |
| TSA635-HTP | 63.5 | |||||||
| TSA762-HTP | 76.2 | |||||||
| TSA826-HTP | 82.6 | |||||||
| TSA950-HTP | 95.0 | |||||||
| TSA1016-HTP | 101.6 |
Note
1. The hardness of the top plate is HRC40 or higher (the main chain is Standard Series).
2. This product is made to order.
3. The top plate is attached riveting.
Applicable sprocket
*Click on the model number to display detailed information. Click on the image to enlarge.
  |
|
Applicable Plastic rail
*Click on the model number to display detailed information. Click on the image to enlarge.
  |
This Plastic rail is not heat-resistant or chemical-resistant. |
||||||||||||||||||||
