Stainless steel Top chain TS type Major Specifications

TS


Features

  • A conveyor chain with plates attached to double pitch chain. double pitch chain sprockets can be used.
  • ・ NP Series, Lambda and SS Series are also available for the main chain.
  • - There are various specifications available, such as a hardened plate that improves the wear resistance of the plate, and a hard chrome plated + buffed plate on the top surface of the plate, allowing you to select the type that best suits your workpiece and the environment.

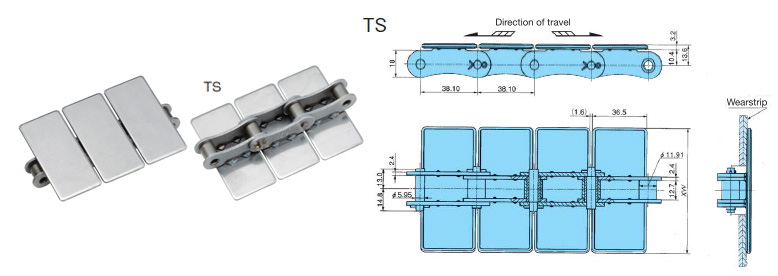

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing

Please contact us

DXF Drawing data

Please refer to the table below
(Click here for a list of DXF data)

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
38.1 Standard Series TS550 55.0 2.94 2.5 -10～150 Allowable load graph
Show		 80
TS635 63.5 2.7
TS762 76.2 3.0
TS826 82.6 3.2
TS950 95.0 3.5
TS1016 101.6 3.7
TS1100 110.0 3.9
TS1143 114.3 4.0
TS1270 127.0 4.3
TS1524 152.4 4.9
TS1905 190.5 5.8
38.1 NP Series TS550-NP 55.0 2.94 2.5 -10～150 Allowable load graph
Show		 80
TS635-NP 63.5 2.7
TS762-NP 76.2 3.0
TS826-NP 82.6 3.2
TS950-NP 95.0 3.5
TS1016-NP 101.6 3.7
TS1100-NP 110.0 3.9
TS1143-NP 114.3 4.0
TS1270-NP 127.0 4.3
TS1524-NP 152.4 4.9
TS1905-NP 190.5 5.8
38.1 Lambda Specification TS550-LMCNP 55.0 2.94 2.5 -10～150 Allowable load graph
Show		 80
TS635-LMCNP 63.5 2.7
TS762-LMCNP 76.2 3.0
TS826-LMCNP 82.6 3.2
TS950-LMCNP 95.0 3.5
TS1016-LMCNP 101.6 3.7
TS1100-LMCNP 110.0 3.9
TS1143-LMCNP 114.3 4.0
TS1270-LMCNP 127.0 4.3
TS1524-LMCNP 152.4 4.9
TS1905-LMCNP 190.5 5.8
38.1 SS Series TS550-SS 55.0 1.03 2.5 -20～400 Allowable load graph
Show		 80
TS635-SS 63.5 2.7
TS762-SS 76.2 3.0
TS826-SS 82.6 3.2
TS950-SS 95.0 3.5
TS1016-SS 101.6 3.7
TS1100-SS 110.0 3.9
TS1143-SS 114.3 4.0
TS1270-SS 127.0 4.3
TS1524-SS 152.4 4.9
TS1905-SS 190.5 5.8

Note
1. The plate shape of SS Series is slightly different from other specifications.
　

CTP type

[Click to enlarge]

chain
pitch
kg/m		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
38.10 CTP type TS635-CTP 63.5 - - - - -
TS762-CTP 76.2

Note
1. This product is made to order.
2. The back vent radius will be larger, so please contact us if you are replacing a TS type.

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.
Type Material Basic model number effective number of teeth range
Pilot bore product Steel RF2060S-1B□T■ 9½～12½
Stainless RF2060S-1B□T-SS 9½～12½
Engineering plastics RF2060S-1B□T-P 9½～12½
Fit Bore Steel RF2060S-1B□T-H～ 9½～12½
Stainless RF2060S-1B□T-SS-H～ 9½～12½
Lock Sprocket S type Steel RF2060S-1B□T-S○○○○● 9½～12½

Applicable accessories

*Click on the model number to display detailed information. Click on the image to enlarge.

Disassembly/connection tool for TS
Applicable chain Model number Purpose
TS TS-AST Disassembly/connection

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
