Stainless steel Top chain TS type Major Specifications
TS
Features
- A conveyor chain with plates attached to double pitch chain. double pitch chain sprockets can be used.
- ・ NP Series, Lambda and SS Series are also available for the main chain.
- - There are various specifications available, such as a hardened plate that improves the wear resistance of the plate, and a hard chrome plated + buffed plate on the top surface of the plate, allowing you to select the type that best suits your workpiece and the environment.
[Click to enlarge]
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Catalogs and Instruction Manuals
Major Specifications, price, delivery
| chain pitch mm |
Specification | Model | top Plate Width XW mm |
Maximum allowable load kN |
Estimated mass kg/m |
Operating temperature range °C |
ability Line diagram |
1 unit Tori Number of links |
|---|---|---|---|---|---|---|---|---|
| 38.1 | Standard Series | TS550 | 55.0 | 2.94 | 2.5 | -10～150 | Allowable load graph Show |
80 |
| TS635 | 63.5 | 2.7 | ||||||
| TS762 | 76.2 | 3.0 | ||||||
| TS826 | 82.6 | 3.2 | ||||||
| TS950 | 95.0 | 3.5 | ||||||
| TS1016 | 101.6 | 3.7 | ||||||
| TS1100 | 110.0 | 3.9 | ||||||
| TS1143 | 114.3 | 4.0 | ||||||
| TS1270 | 127.0 | 4.3 | ||||||
| TS1524 | 152.4 | 4.9 | ||||||
| TS1905 | 190.5 | 5.8 | ||||||
| 38.1 | NP Series | TS550-NP | 55.0 | 2.94 | 2.5 | -10～150 | Allowable load graph Show |
80 |
| TS635-NP | 63.5 | 2.7 | ||||||
| TS762-NP | 76.2 | 3.0 | ||||||
| TS826-NP | 82.6 | 3.2 | ||||||
| TS950-NP | 95.0 | 3.5 | ||||||
| TS1016-NP | 101.6 | 3.7 | ||||||
| TS1100-NP | 110.0 | 3.9 | ||||||
| TS1143-NP | 114.3 | 4.0 | ||||||
| TS1270-NP | 127.0 | 4.3 | ||||||
| TS1524-NP | 152.4 | 4.9 | ||||||
| TS1905-NP | 190.5 | 5.8 | ||||||
| 38.1 | Lambda Specification | TS550-LMCNP | 55.0 | 2.94 | 2.5 | -10～150 | Allowable load graph Show |
80 |
| TS635-LMCNP | 63.5 | 2.7 | ||||||
| TS762-LMCNP | 76.2 | 3.0 | ||||||
| TS826-LMCNP | 82.6 | 3.2 | ||||||
| TS950-LMCNP | 95.0 | 3.5 | ||||||
| TS1016-LMCNP | 101.6 | 3.7 | ||||||
| TS1100-LMCNP | 110.0 | 3.9 | ||||||
| TS1143-LMCNP | 114.3 | 4.0 | ||||||
| TS1270-LMCNP | 127.0 | 4.3 | ||||||
| TS1524-LMCNP | 152.4 | 4.9 | ||||||
| TS1905-LMCNP | 190.5 | 5.8 | ||||||
| 38.1 | SS Series | TS550-SS | 55.0 | 1.03 | 2.5 | -20～400 | Allowable load graph Show |
80 |
| TS635-SS | 63.5 | 2.7 | ||||||
| TS762-SS | 76.2 | 3.0 | ||||||
| TS826-SS | 82.6 | 3.2 | ||||||
| TS950-SS | 95.0 | 3.5 | ||||||
| TS1016-SS | 101.6 | 3.7 | ||||||
| TS1100-SS | 110.0 | 3.9 | ||||||
| TS1143-SS | 114.3 | 4.0 | ||||||
| TS1270-SS | 127.0 | 4.3 | ||||||
| TS1524-SS | 152.4 | 4.9 | ||||||
| TS1905-SS | 190.5 | 5.8 |
Note
1. The plate shape of SS Series is slightly different from other specifications.

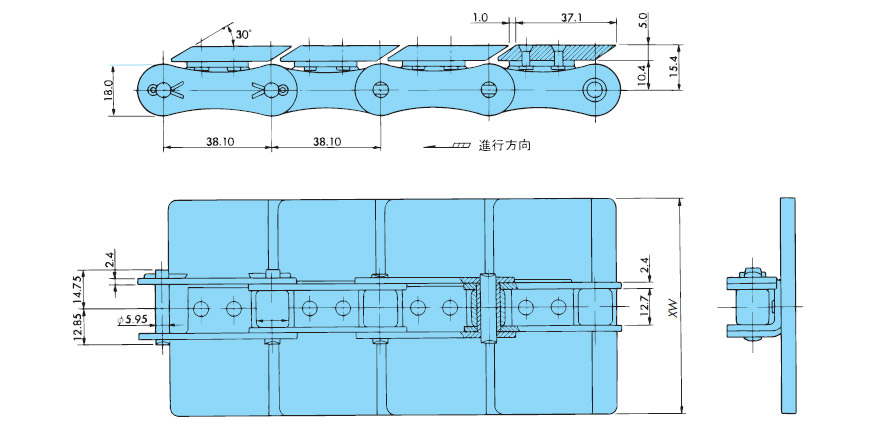

CTP type
[Click to enlarge]
[Click to enlarge]
| chain pitch kg/m |
Specification | Model | top Plate Width XW mm |
Maximum allowable load kN |
Estimated mass kg/m |
Operating temperature range °C |
ability Line diagram |
1 unit Tori Number of links |
|---|---|---|---|---|---|---|---|---|
| 38.10 | CTP type | TS635-CTP | 63.5 | - | - | - | - | - |
| TS762-CTP | 76.2 |
Note
1. This product is made to order.
2. The back vent radius will be larger, so please contact us if you are replacing a TS type.

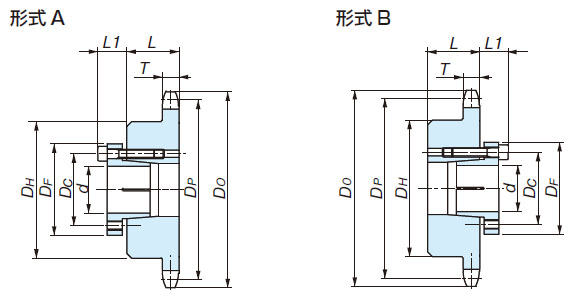

Applicable sprocket
*Click on the model number to display detailed information. Click on the image to enlarge.
  |
|
Applicable accessories
*Click on the model number to display detailed information. Click on the image to enlarge.
Disassembly/connection tool for TS
 |
|
Applicable Plastic rail
*Click on the model number to display detailed information. Click on the image to enlarge.
  |
This Plastic rail is not heat-resistant or chemical-resistant. |
||||||||||||||||||||
