Stainless steel Top chain TU type Major Specifications

TU


Features

  • - A horizontal conveyor chain that can be bent vertically as well. Can be used in a variety of layouts (including 3D layouts).

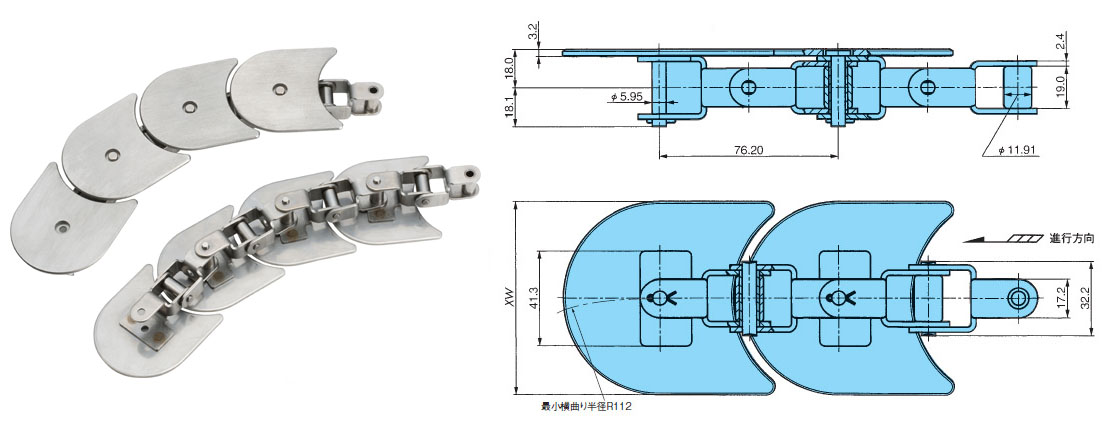

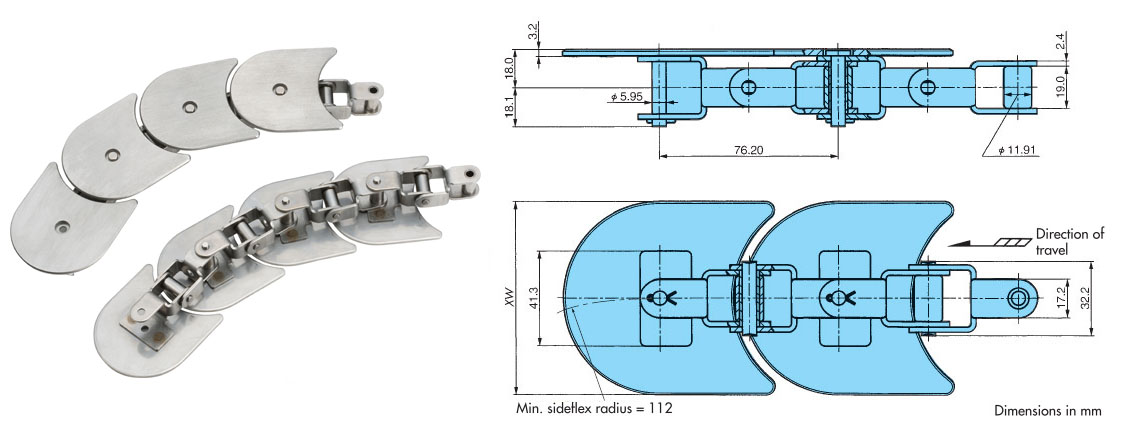

[Click to enlarge]
PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD.
Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
76.20 Standard Series TU826 82.6 0.98 3.8 -10～150 Allowable load graph
Show		 40
TU1143 114.3 4.5
76.20 SS Series TU826-SS 82.6 0.98 3.8 -10～150 Allowable load graph
Show		 40
TU1143-SS 114.3 4.5

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.
Model number Number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 Maximum shaft bore diameter
mm		 type
TU1100T 11 270.47 Φ23 Φ50 Integrated type

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
