Stainless steel Top chain TTU type Major Specifications

TTU


Features

  • - Standard type stainless steel Top chain for curved conveyance. All parts are made of stainless steel.
  • - The upper surface has a shape where the hinge and plate are partially overlapped, making it suitable for stable transport of transported items.
  • - The top surface of the plate has been polished with a grinding finish.

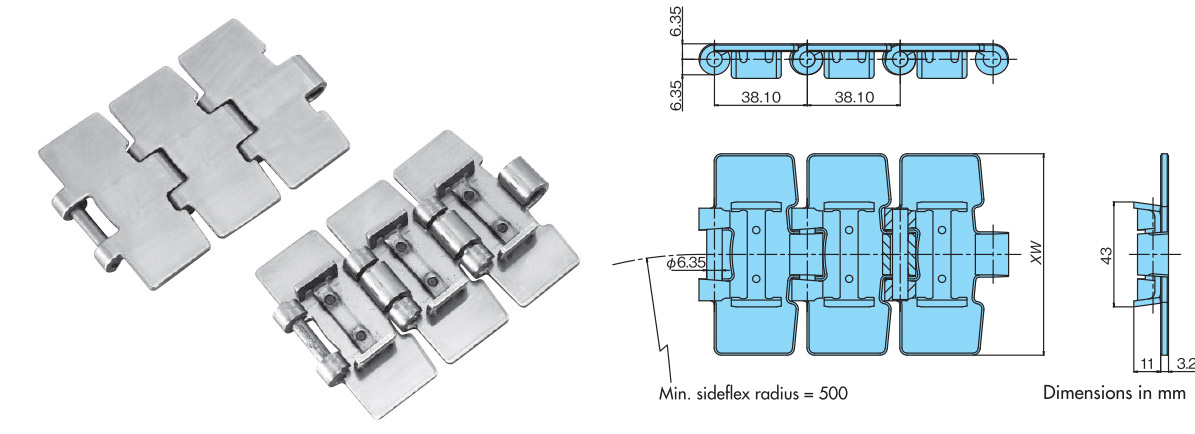

[Click to enlarge]
PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD.
Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links		 Standard price/link Delivery
38.1 N specification TTU762-N 76.2 2.16 2.8 -20～400 Allowable load graph
Show		 80 お問合せください お問合せください
TTU826-N 82.6 3.0 お問合せください お問合せください
TTU1143-N 114.3 3.7 お問合せください お問合せください
TTU1905-N 190.5 5.5 お問合せください お問合せください

Note
1. The top surface of the plate is polished. The top plate and pins are made of martensitic stainless steel.
2. The model was changed in October 2003 and July 2009. It cannot be connected to the previous TTU type. Please replace each chain individually.
3. Minimum lateral bending radius is different from the TTU type manufactured before October 2003. Please check Minimum lateral bending radius when replacing.


Joint pin

Model number Applicable chain type Pin Material Price Delivery drawing
TTU-N-RP TTU-N Martensitic stainless steel お問合せください お問合せください drawing

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.
Steel sprocket (pilot bore type)

Shaft hole processing service available
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 Maximum shaft bore diameter
mm		 Type
TTU1012T 21 10½ 129.26 Φ16 Φ55 Integrated type
TTU1112T 23 11½ 141.22
TTU1212T 25 12½ 153.20
Steel sprocket (lock series)
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 Type
TTU1012T-S□□□□ 21 10½ 129.26 Φ15～Φ45 Integrated type
TTU1112T-S□□□□ 23 11½ 141.22
TTU1212T-S□□□□ 25 12½ 153.20
Engineering plastic sprocket
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 Shaft hole dimensions
mm		 Type
TP-C12■■■NT-SPR 21 10½ 129.26 Φ25, Φ30, Φ35, Φ40 split type
TP-C12■■■NT-SPR 23 11½ 141.22 Φ25, Φ30, Φ35, Φ40
TP-C12■■■NT-SPR 25 12½ 153.20 Φ25, Φ30, Φ35, Φ40
×
(You can move it by dragging it)
■ Engineering plastic sprocket
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		Type
TP-C12061NT-SPR 21 10½ 129.26 Φ25 split type
TP-C12062NT-SPR Φ30
TP-C12063NT-SPR Φ35
TP-C12064NT-SPR Φ40
×
(You can move it by dragging it)
■ Engineering plastic sprocket
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		Type
TP-C12109NT-SPR 23 11½ 141.22 Φ25 split type
TP-C12110NT-SPR Φ30
TP-C12111NT-SPR Φ35
TP-C12112NT-SPR Φ40
×
(You can move it by dragging it)
■ Engineering plastic sprocket
Model numberNumber of teetheffective number of teethPitch Circle Diameter
mm		Shaft hole dimensions
mm		Type
TP-C12073NT-SPR 25 12½ 153.20 Φ25 split type
TP-C12074NT-SPR Φ30
TP-C12075NT-SPR Φ35
TP-C12076NT-SPR Φ40

Applicable idler wheel

*Click on the model number to display detailed information. Click on the image to enlarge.
Model number Equivalent actual number of teeth Outer diameter
mm		 Shaft hole dimensions
mm		 Type
TP-IW1221-25-RY 21 130.0 Φ25.3 split type
TP-IW1221-30-RY Φ30.3
TP-IW1221-35-RY Φ35.3
TP-IW1221-40-RY Φ40.3
TP-IW1223-25-RY 23 142.5 Φ25.3 split type
TP-IW1223-30-RY Φ30.3
TP-IW1223-35-RY Φ35.3
TP-IW1223-40-RY Φ40.3
TP-IW1225-25-RY 25 154.8 Φ25.3 split type
TP-IW1225-30-RY Φ30.3
TP-IW1225-35-RY Φ35.3
TP-IW1225-40-RY Φ40.3

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
