Stainless steel Top chain TTKU type Major Specifications

TTKU


Features

  • - A curved conveyor chain with guide projections on the outer plate for lateral bending. It has a higher allowable tension than TTU.
  • · The chain can be removed from the rail even in curved sections, making maintenance easy.
  • ・Suitable for light loads and low speed applications. In the case of high speeds and heavy loads, the corners may lift up.

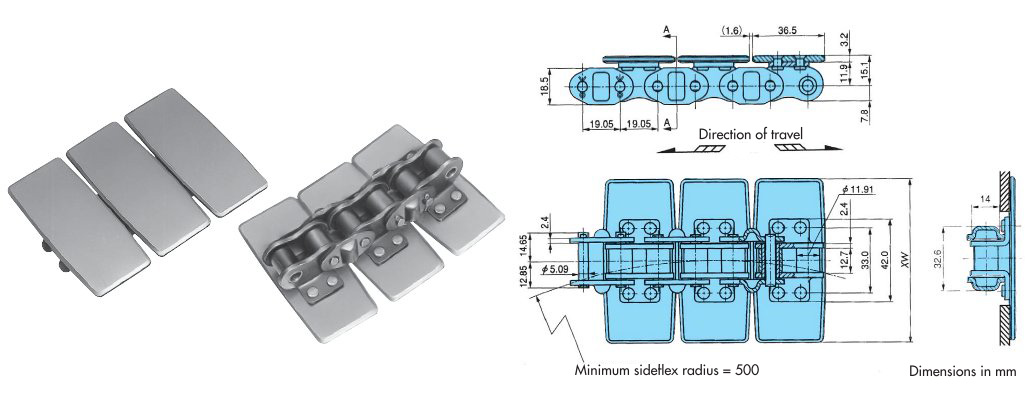

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD.
Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
19.05 Standard Series TTKU826 82.6 2.84 3.8 -10～150 Allowable load graph
Show		 160
TTKU1100 110.0 4.5

Note
1. SS Series: Maximum allowable load = 0.69 kN can also be manufactured.
2. For low-speed (45 m/min or less) horizontally curved transport.


Material

Top plate Main chain countersunk
18Cr stainless steel steel 13Cr stainless steel

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.

For RS60 equivalent chain
Type Material Basic model number
Pilot bore product steel RS60-1B□T■
Stainless RS60-1B□T-SS
Engineering plastics RS60-1B□T-P
Fit Bore steel RS60-1B□TQ-H～
Stainless RS60-1B□T-SS-H～
Lock Sprocket S type steel RS60-1B□T■-S○○○○●
Lock Sprocket N type steel RS60-1B□TQ-N○○○●
The above sprockets with 12 or more teeth can be used.

Applicable accessories

*Click on the model number to display detailed information. Click on the image to enlarge.

Disassembly tool for TRU, TTKU
Applicable chain Model number Purpose
TRU, TTKU TRU-TTKU-AST For disassembly only

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
