Stainless steel Top chain TRU type Major Specifications

TRU


Features

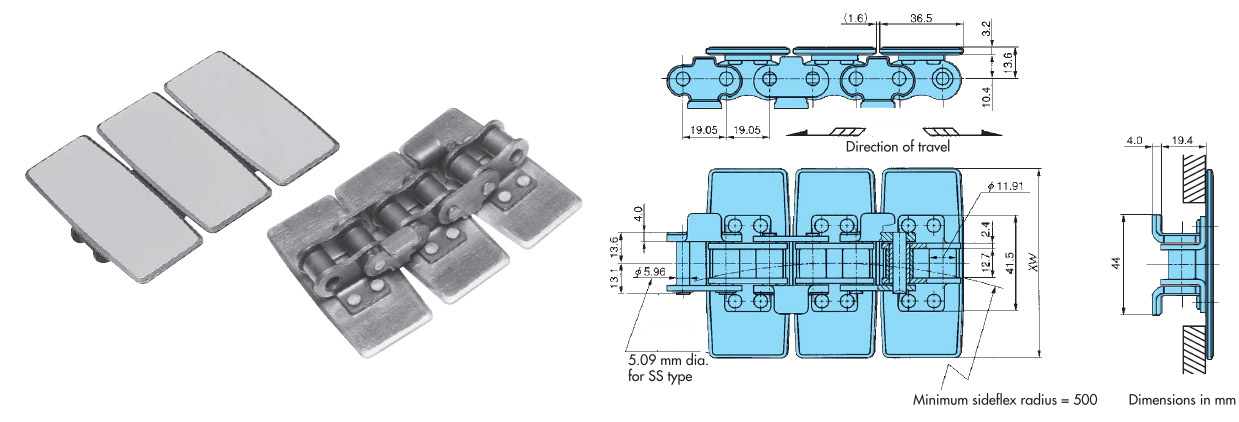

  • - Curved conveyor chain with float-preventive tabs. Higher allowable tension than the TTU type.

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ 3DCADデータ及びPARTcommunityのお問い合わせにつきましてはキャデナス・ウェブ・ツー・キャドまでご連絡ください。
　【キャデナス・ウェブ・ツー・キャド株式会社】お問い合わせ先は、こちら(外部サイト)をご確認ください。

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
19.05 Standard Series TRU762-T 76.2 4.02 3.9 -10～150 Allowable load graph
Show		 160
TRU826-T 82.6 4.1
TRU1016-T 101.6 4.6
TRU1100-T 110.0 4.8
TRU1143-T 114.3 4.9
TRU1270-T 127.0 5.2
19.05 SS Series TRU762-T-SS 76.2 0.69 3.9 -20～400 Allowable load graph
Show		 160
TRU826-T-SS 82.6 4.1
TRU1016-T-SS 101.6 4.6
TRU1100-T-SS 110.0 4.8
TRU1143-T-SS 114.3 4.9
TRU1270-T-SS 127.0 5.2
19.05 NP Series TRU762-T-NP 76.2 4.02 3.9 -10～150 Allowable load graph
Show		 160
TRU826-T-NP 82.6 4.1
TRU1016-T-NP 101.6 4.6
TRU1100-T-NP 110.0 4.8
TRU1143-T-NP 114.3 4.9
TRU1270-T-NP 127.0 5.2

Material

Specification Top plate Main chain countersunk
Standard Series 18Cr stainless steel steel 13Cr stainless steel
SS Series 18-8 stainless steel Steel + Ni plating 18-8 stainless steel

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.

For RS60 equivalent chain
Type Material Basic model number
Pilot bore product steel RS60-1B□T■
Stainless RS60-1B□T-SS
Engineering plastics RS60-1B□T-P
Fit Bore steel RS60-1B□TQ-H～
Stainless RS60-1B□T-SS-H～
Lock Sprocket S type steel RS60-1B□T■-S○○○○●
Lock Sprocket N type steel RS60-1B□TQ-N○○○●
The above sprockets with 19 or more teeth can be used.

Applicable accessories

*Click on the model number to display detailed information. Click on the image to enlarge.

Disassembly tool for TRU, TTKU
Applicable chain Model number Purpose
TRU, TTKU TRU-TTKU-AST For disassembly only

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
