Stainless steel Top chain TO type Major Specifications

TO


Features

  • - Horizontal conveyance chain. Ideal for horizontal conveyance in small spaces.

[Click to enlarge]

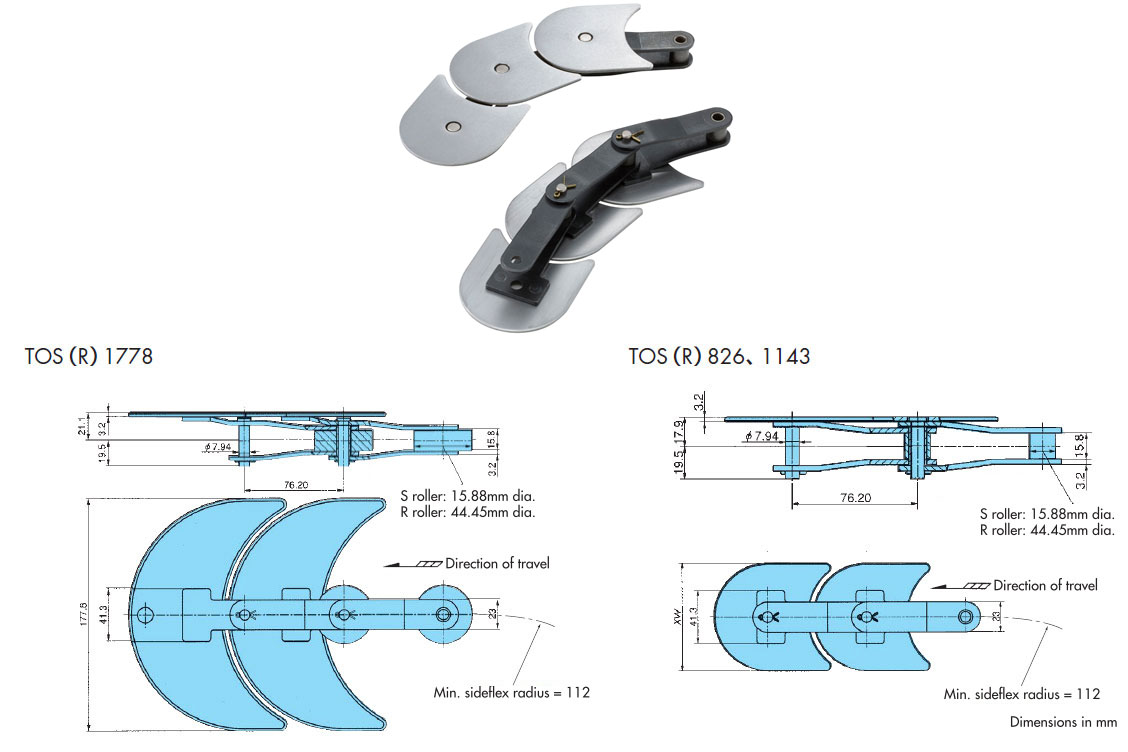

PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD.
Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Major Specifications, price, delivery

chain
pitch
mm		 Specification Model Roller
Type		 top
Plate Width
XW
mm		 Maximum allowable load
kN		 Estimated
mass
kg/m		 Operating temperature range
°C		 ability
Line diagram		 1 unit
Tori
Number of links
76.20 Standard Series TOS826 Sローラ形 82.6 2.94 4.1 -10～150 Allowable load graph
Show		 40
TOS1143 Sローラ形 114.3 4.8
TOS1778 Sローラ形 177.8 6.3
TOR826 Rローラ形 82.6 5.9
TOR1143 Rローラ形 114.3 6.9
TOR1778 Rローラ形 177.8 8.1
76.20 SS Series TOS826-SS Sローラ形 82.6 1.77 4.1 -10～150 Allowable load graph
Show		 40
TOS1143-SS Sローラ形 114.3 4.8
TOS1778-SS Sローラ形 177.8 6.3
TOR826-SS Rローラ形 82.6 5.9
TOR1143-SS Rローラ形 114.3 6.9
TOR1778-SS Rローラ形 177.8 8.1

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.
TOR・TORP
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 Maximum shaft bore diameter
mm		 type
TOR1100T 11 11 270.47 Φ23 Φ45 Integrated type
TOS・TOSP
Model number Number of teeth effective number of teeth Pitch Circle Diameter
mm		 pilot bore
mm		 Maximum shaft bore diameter
mm		 type
TOS1013T 31 10⅓ 254.59 Φ23 Φ45 Integrated type

Applicable Plastic rail

*Click on the model number to display detailed information. Click on the image to enlarge.
rail Material Symbol Model number Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

This Plastic rail is not heat-resistant or chemical-resistant.
If you are using the product in a special environment or under special conditions, please contact us.
