Major Specifications sprockets for Plastic modular chain
形番：WT-S6300-18T

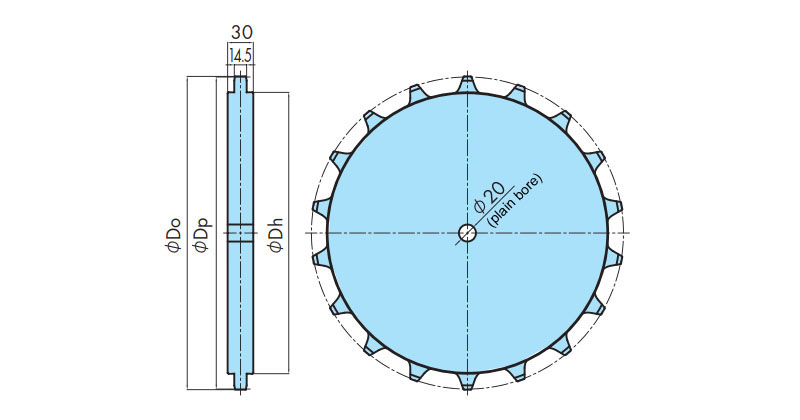

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
標準価格
Please contact us
Delivery
Please contact us
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding 3D CAD data and PARTcommunity, please contact Cadenas Web-to-CAD. For inquiries regarding Cadence Web-to-CAD Co., Ltd., please check here (external site). |
Catalogs and Instruction Manuals
Applicable chain
WT6306-W
Major Specifications
| Model number | Number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape |
Shaft hole dimensions d mm |
pilot bore mm |
Hub diameter Dh mm |
|---|---|---|---|---|---|---|---|
| WT-S6300-18T | 18 | 365.68 | 367.1 | Upon request, we will consider production. We will respond to your request. The standard is a square hole shape. | Upon request, we will consider production. We will respond to your request. | 20 | 330 |
| Material | Appearance color | Type | Operating temperature range |
|---|---|---|---|
| polyamide | blue | Integrated type | -20℃～60℃ |
Note
1. We can also manufacture sprockets with other tooth counts, shapes, and materials than those listed above. Please contact us for details.
