プラスチックモジュラーチェーン用スプロケット WT-N1300 主要諸元
形番：WT-N1300-24T30

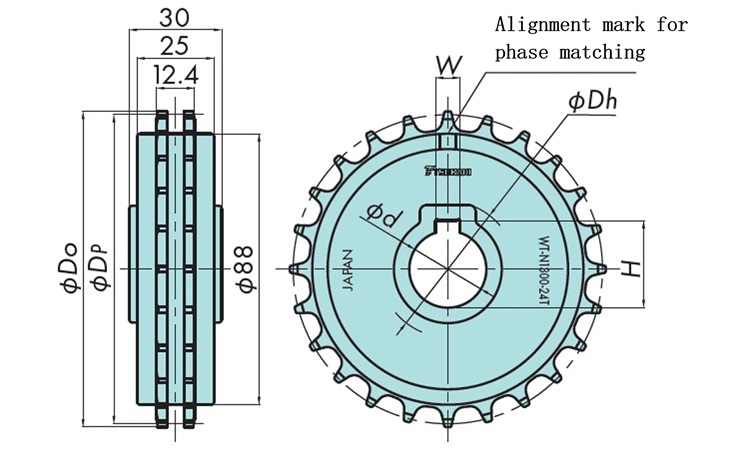

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
標準価格
Please contact us
Delivery
Please contact us
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding 3D CAD data and PARTcommunity, please contact CADENAS WEB2CAD. For contact information for CADENAS WEB2CAD Inc., please check here (external site). |
Catalogs and Instruction Manuals
Applicable chain
WT1306-W
Major Specifications
| Model number | Number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape |
Shaft Hole Diameter d mm |
Keyway W mm | Keyway H mm |
Hub diameter Dh mm |
Approximate Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| WT-N1300-24T30 | 24 | 100.36 | 102.5 | Circle | Φ30 | 8 | 33.3 | 49 | 0.1 |
| Material | Appearance color | Type | Operating temperature range |
|---|---|---|---|
| reinforced polyamide | black | Integrated type | -20℃～80℃ |
Note
1. In stock.
2.The chain and the shaft are loosely fitted to absorb differences in thermal expansion between the chain and conveyor, and installation errors between the chain and sprocket.
3. Use polished steel bars for the shaft specifications.
