Major Specifications of Top chain sprockets
形番：TTUP-12T40
[Click to enlarge]
Standard price
Please contact us
Delivery
Please contact us
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Catalogs and Instruction Manuals
Applicable chain
TP-880TAB, TPH, TPH-P, TPS, TPS-P, TPU, TPUH-BO, TPU-LH, TPU-P, TPUT-LH, TPU-USR, TTUP, TTUPH, TTUP-LLPC, TTUP-M, TTUP-P, TTUPT-M

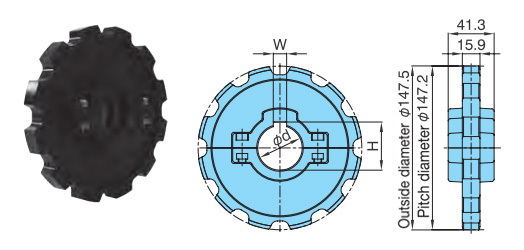

Major Specifications
| Model number | Number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape |
Shaft Hole Diameter d mm |
Keyway W mm | Keyway H mm | Approximate Mass kg |
|---|---|---|---|---|---|---|---|---|
| TTUP-12T40 | 12 | 147.2 | 147.5 | Circle | Φ40 | 12 | 43.3 | 0.4 |
| Material | Appearance color | Bolt/nut material | type | Operating temperature range |
|---|---|---|---|---|
| reinforced polyamide | black | stainless steel | split type | -20℃～80℃ |
Note
1. Bolt tightening torque: 5.7 N m
2. Do not mix split sprocket pairs with other pairs.
