Major Specifications of Top chain sprockets

形番：TTPM1200T


[Click to enlarge]

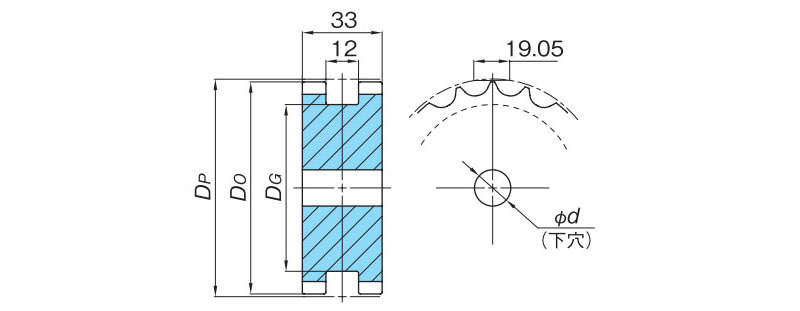

PDF outline drawing

TTPM1200T

DXF Drawing data

TTPM1200T

(Click here for a list of DXF data)

Standard price

Please contact us

Delivery

Please contact us

Catalogs and Instruction Manuals

Applicable chain

TTPM

Major Specifications

Model number Number of teethPitch Circle Diameter
Dp
mm		Outer diameter
Do
mm		Shaft hole
shape		pilot bore
mm		Groove diameter
DG
mm		Approximate Mass
kg
TTPM1200T 1273.673Circle15590.9
Materialtype
Carbon steel for machine structuresIntegrated type

注記
　1.上記歯数以外も製作いたします。
