Major Specifications of Top chain sprockets
形番：TTP-23T45

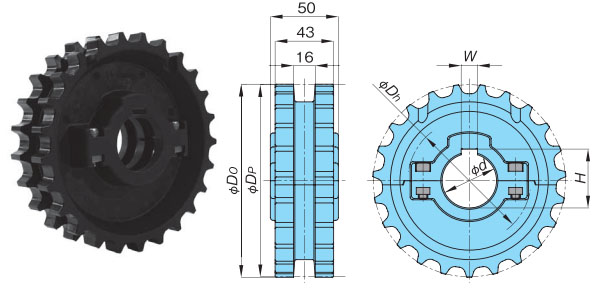

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
Price
Please contact us
Delivery
Please contact us
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding 3D CAD data and PARTcommunity, please contact Cadenas Web-to-CAD. For inquiries regarding Cadence Web-to-CAD Co., Ltd., please check here (external site). |
Catalogs and Instruction Manuals
Applicable chain
TTP, TTPH, TTPH-P, TTP-P, TTPT, WT3835-K, WT3835RN-K, WT3835-T, WT3835TRN-K
Major Specifications
| Model number | Number of teeth | effective number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape |
Shaft Hole Diameter d mm |
Keyway W mm | Keyway H mm |
Hub diameter Dh mm |
Approximate Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|
| TTP-23T45 | 23 | 11½ | 141.22 | 142.0 | Circle | Φ45 | 14 | 48.8 | 90 | 0.5 |
| Material | Appearance color | Bolt/nut material | Type | Operating temperature range |
|---|---|---|---|---|
| reinforced polyamide | black | stainless steel | split type | -20℃～80℃ |
Note
1. Bolt tightening torque: 5.7 N m
2. Do not mix split sprocket pairs with other pairs.
3. This sprocket can be used in an environment with no temperature changes.
