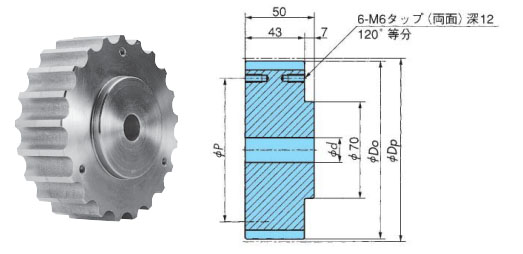

Major Specifications of Top chain sprockets
形番：TT912T
[Click to enlarge]
Standard price
Please contact us
Delivery
Please contact us
Catalogs and Instruction Manuals
Applicable chain
TT
Major Specifications
| Model number | Number of teeth | effective number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape | pilot bore mm | Approximate Mass kg |
|---|---|---|---|---|---|---|---|
| TT912T | 19 | 9½ | 117.34 | 117 | Circle | 18 | 2.8 |
| ガイドリング取付ピッチ径 P mm |
Material | type |
|---|---|---|
| 92 | Carbon steel for machine structures | Integrated type |
注記
1.歯先硬化を施していません。
Guide Ring
| Model number | Outer diameter mm |
Mounting pitch diameter P mm |
Approximate Mass kg |
Standard price | Delivery |
|---|---|---|---|---|---|
| TT912G | 116 | 92 | 0.17 | Please contact us | Please contact us |
*One set includes two guide rings and six mounting bolts.
