Major Specifications of Top chain sprockets

形番：TP-UB1300T


[Click to enlarge]

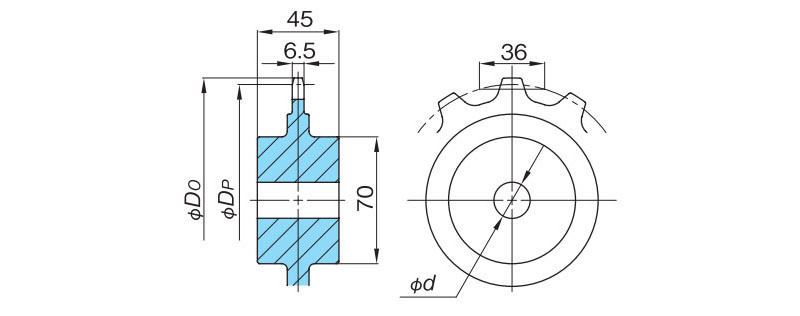

PDF outline drawing

TP-UB1300T

DXF Drawing data

TP-UB1300T

(Click here for a list of DXF data)

Standard price

Please contact us

Delivery

Please contact us

Catalogs and Instruction Manuals

Applicable chain

TP-UB36, TP-UB36P

Major Specifications

Model number Number of teethPitch Circle Diameter
Dp
mm		Outer diameter
Do
mm		Shaft hole
shape		pilot bore
mm		Approximate Mass
kg
TP-UB1300T 13150.4159Circle202.5
Materialtype
Carbon steel for machine structuresIntegrated type
