Major Specifications of Top chain sprockets

形番：TP-OTD1012T


[Click to enlarge]

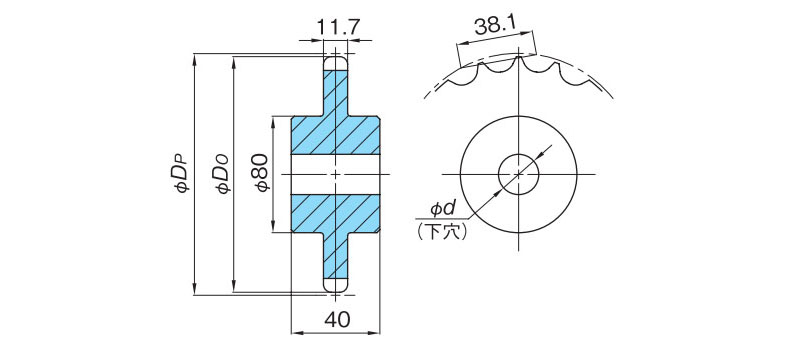

PDF outline drawing

TP-OTD1012T

DXF Drawing data

TP-OTD1012T
(DXFデータ一覧はこちら)

Standard price

Please contact us

Delivery

Please contact us

Catalogs and Instruction Manuals

Applicable chain

TP-OTD

Major Specifications

Model number Number of teetheffective number of teethPitch Circle Diameter
Dp
mm		Outer diameter
Do
mm		Shaft hole
shape		pilot bore
mm		Approximate Mass
kg
TP-OTD1012T 2110½129.2129Circle202.1
Materialtype
Carbon steel for machine structuresIntegrated type

注記
　1.上記歯数以外も製作いたします。
