Major Specifications of Top chain sprockets
形番：TP-C12115T-SPR
[Click to enlarge]

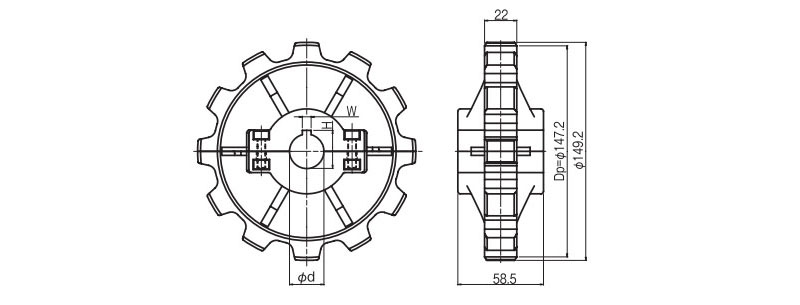

PDF outline drawing
DXF Drawing data
Standard price
Please contact us
Delivery
Please contact us
Catalogs and Instruction Manuals
Applicable chain
TPSS, TPUS, TPUS953Y-T-LAP, TPUS-LBP, TPUS-Y-T, TTUPS
Major Specifications
| Model number | Number of teeth | Pitch Circle Diameter Dp mm | Outer diameter Do mm | Shaft hole shape |
Shaft Hole Diameter d mm |
Keyway W mm | Keyway H mm | Approximate Mass kg |
|---|---|---|---|---|---|---|---|---|
| TP-C12115T-SPR | 12 | 147.2 | 149.2 | Circle | Φ30 | 8 | 33.3 | 0.37 |
| Material | Appearance color | Bolt/nut material | type |
|---|---|---|---|
| reinforced polyamide | black | Bolts: Stainless steel Nut: Brass + Ni plating | split type |
