Major Specifications of Top chain sprockets

形番：BTO8-18T30


[Click to enlarge]

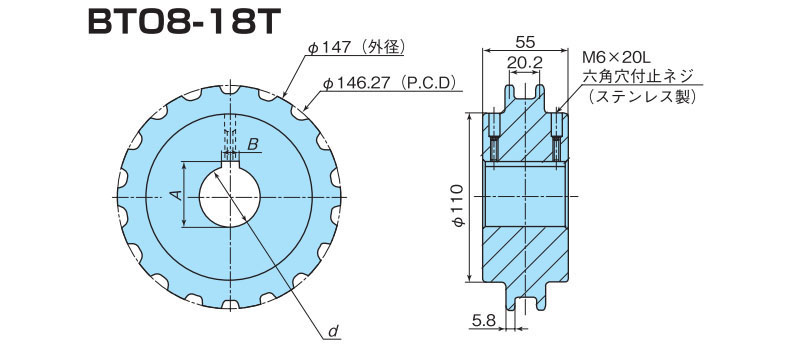

PDF outline drawing

BTO8-18T30

DXF Drawing data

BTO8-18T30

(Click here for a list of DXF data)

Standard price

Please contact us

Delivery

Please contact us

Catalogs and Instruction Manuals

Applicable chain

BTO8-M

Major Specifications

Model number Number of teethPitch Circle Diameter
Dp
mm		Outer diameter
Do
mm		Shaft hole
shape		 Shaft Hole Diameter
d
mm		 Keyway
W
mm		Keyway
H
mm		Approximate Mass
kg
BTO8-18T30 18146.27147CircleΦ30833.30.520
MaterialAppearance colortypeOperating temperature range
Ultra-high molecular weight polyethyleneホワイトIntegrated type-20℃～60℃
