Major Specifications of idler wheels for Top chain
形番：TP-IWB30UTW-15T25

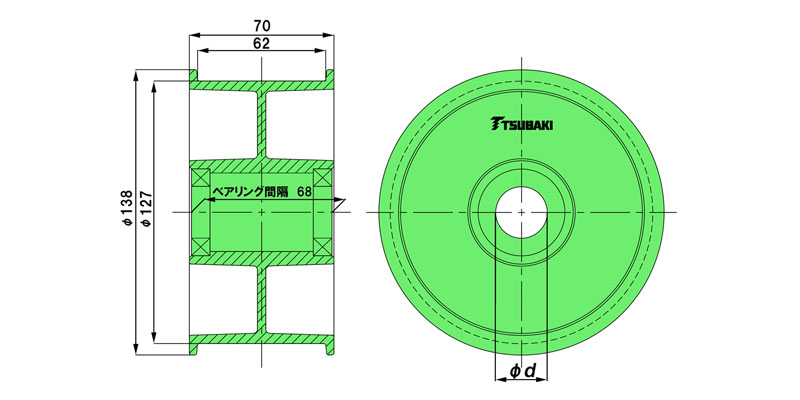

[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
標準価格
Please contact us
Delivery
Please contact us
Catalogs and Instruction Manuals
Applicable chain
TP-30UTW-LAP
Major Specifications
| Model number | Equivalent number of teeth | Outer diameter Do mm | Shaft hole shape | Shaft Hole Diameter d mm | Approximate Mass kg |
|---|---|---|---|---|---|
| TP-IWB30UTW-15T25 | 15 | 138 | Circle | Φ25 | 0.36 |
| Body material | Appearance color | Bearing Material | Type | Operating temperature range |
|---|---|---|---|---|
| polyamide | black | stainless (6905 Double-sided rubber seal) | Integrated type | -20℃～80℃ |
Note
1. Use polished steel bars for the shaft. (We recommend a shaft tolerance of g6.)
2. To prevent lateral movement, install anti-slip materials on both sides of the idler wheel (bearing).
