Major Specifications of idler wheels for Top chain

形番：TP-IW30UTW-15T20


[Click to enlarge]

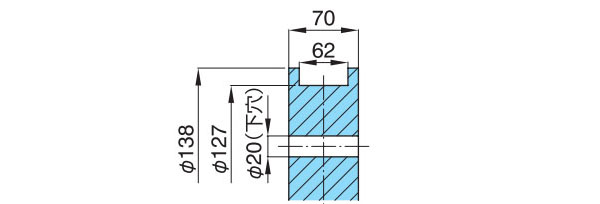

PDF outline drawing

TP-IW30UTW-15T20

DXF Drawing data

TP-IW30UTW-15T20
(DXFデータ一覧はこちら)

Price

Please contact us

Delivery

Please contact us

Catalogs and Instruction Manuals

Applicable chain

TP-30UTW-LAP

Major Specifications

Model number Equivalent number of teeth Outer diameter
Do
mm		Shaft hole
shape		pilot bore
mm		Approximate Mass
kg
TP-IW30UTW-15T20 15138Circle200.9
Material Appearance colorTypeOperating temperature range
Ultra-high molecular weight polyethylenewhiteIntegrated type-20℃～60℃

注記
　1.60℃を超える場合、ステンレス製(注文生産品)をご使用ください。
