Major Specifications of idler wheels for Top chain
形番：TP-C12120T-IW
[Click to enlarge]

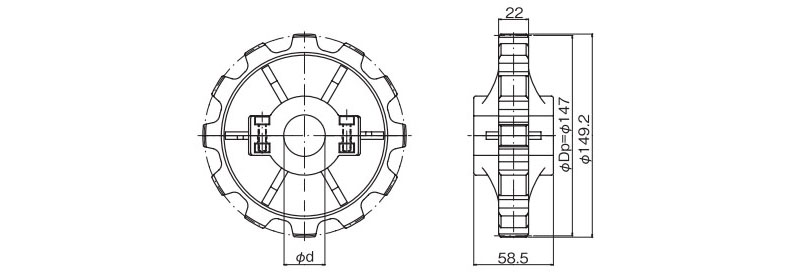

PDF outline drawing
DXF Drawing data
Standard price
Please contact us
Delivery
Please contact us
Catalogs and Instruction Manuals
Applicable chain
TPSS, TPUS, TPUS953Y-T-LAP, TPUS-LBP, TPUS-Y-T, TTUPS
Major Specifications
| Model number | Number of teeth | Pitch circle diameter Dp mm | Outer diameter Do mm | Shaft hole shape | Shaft Hole Diameter d mm | Approximate Mass kg |
|---|---|---|---|---|---|---|
| TP-C12120T-IW | 12 | 147 | 149.2 | Circle | Φ30 | 0.33 |
| Material | Appearance color | Bolt and nut material | type |
|---|---|---|---|
| polyamide | black | Bolts: Stainless steel Nut: Brass + Ni plating | split type |
