Universal Foot (UF)
Can be used for conveyor or equipment legs. Use in places where tilt or level adjustment is required. The drilled hole type can also be fixed to the floor.
[Click to enlarge]
| Model number | Material | allowable load kN |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| bolt | Main body plate | Anti-slip rubber pad |
|||||||

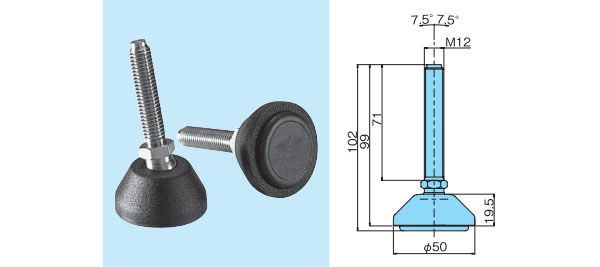

| TP-C17107T-UF | stainless steel (SUS304) |
reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
12.0 | MB173-68729-UF | DXF | Please contact us | Please contact us | |
Note
1. allowable load is the maximum allowable load in a static state.
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|
| bolt | Main body plate | Anti-slip rubber pad | |||||

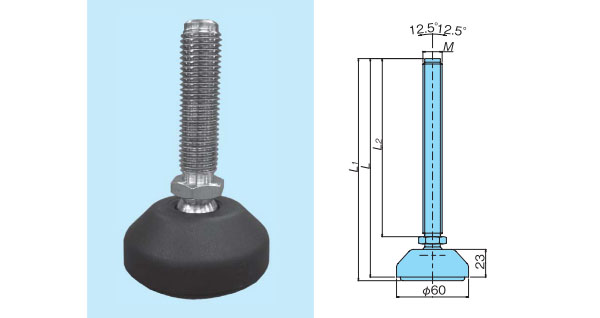

| TP-C171054T-UF | Stainless steel (SUS304) | reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
DXF | Please contact us | Please contact us | |
| TP-C171056T-UF | DXF | Please contact us | Please contact us | ||||
| TP-C171060T-UF | DXF | Please contact us | Please contact us | ||||
| Model number | L | L1 | L2 | allowable load kN |
M | MB equivalent product |
|---|---|---|---|---|---|---|
| TP-C171054T-UF | 94 | 97 | 60 | 15.0 | M16 | MB98-59901-UF |
| TP-C171056T-UF | 179 | 182 | 145 | 15.0 | M16 | MB98-67304-RF |
| TP-C171060T-UF | 179 | 182 | 145 | 15.0 | M20 | MB98-67124-RF |
Note
1. allowable load is the maximum allowable load in a static state.
[Click to enlarge]
| Model number | Material | allowable load kN |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| bolt | nut | Main body plate | Anti-slip rubber pad |
|||||||

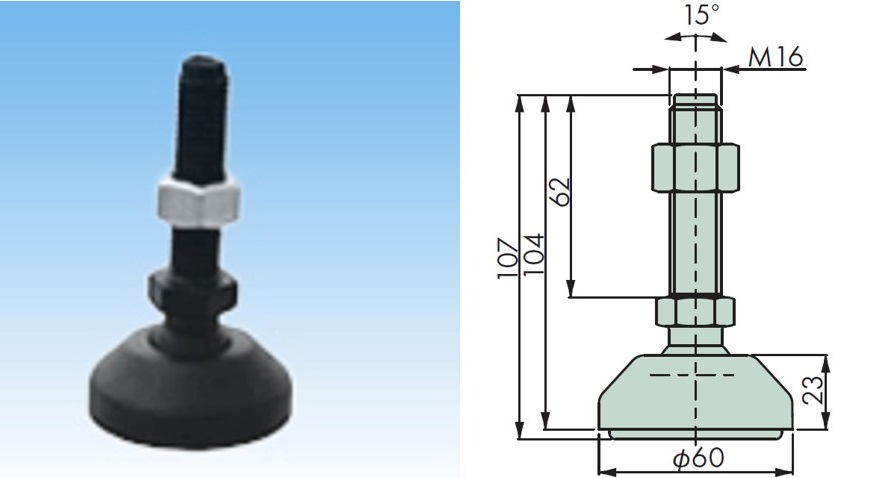

| TP-C17715T-UF | Iron core included polyamide |
stainless steel | reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
0.78 | - | DXF | Please contact us | Please contact us | |
Note
1. allowable load is the maximum allowable load in a static state.
[Click to enlarge]
| Model number | Material | allowable load kN |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolts and nuts | Main body plate | Anti-slip rubber pad |
|||||||

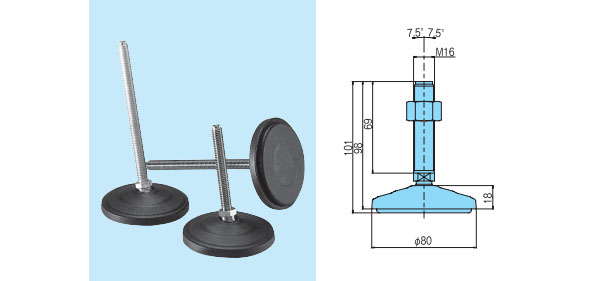

| TP-C17532T-UF | stainless steel (SUS304) |
reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
15.0 | MB172-56571-UF | DXF | Please contact us | Please contact us | |
Note
1. allowable load is the maximum allowable load in a static state.
[Click to enlarge]
| Model number | Material | allowable load kN |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolts and nuts | Main body plate | Anti-slip rubber pad |
|||||||
| TP-C17570CT-UF | stainless steel (SUS304) |
reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
15.0 | MB323-69733-UF | DXF | Please contact us | Please contact us | |
Note
1. allowable load is the maximum allowable load in a static state.
2. The fixing holes are not fully drilled to prevent foreign matter from accumulating. If fixing holes are required, please drill them using a punch and hammer as shown in the illustration.
[Click to enlarge]
| Model number | Material | Tolerance load kN |
H | A | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bolt | Main body plate | Anti-slip rubber pad |
|||||||||
| TP-C176450T-UF | stainless steel (SUS304) |
reinforcement polyamide |
Oil-resistant rubber Shore hardness 70 |
18.0 | 100 | 64 | MB133-63343-UF | DXF | Please contact us | Please contact us | |
| TP-C176453T-UF | 18.0 | 225 | 190 | MB133-67055-UF | DXF | Please contact us | Please contact us | ||||
Note
1. allowable load is the maximum allowable load in a static state.
2. The fixing holes are not fully drilled to prevent foreign matter from accumulating. If fixing holes are required, please drill them using a punch and hammer as shown in the illustration.
[Click to enlarge]
| Model number | Material | allowable load kN |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| bolt | Main body plate | Anti-slip rubber pad |
|||||||

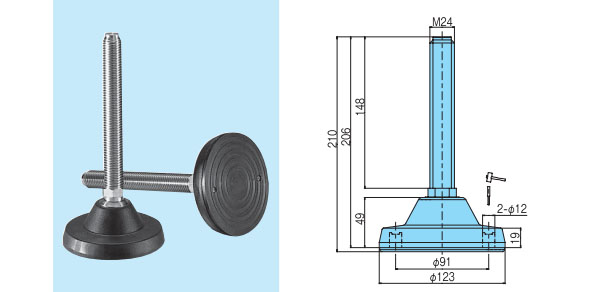

| TP-C17237T-UF | stainless steel (SUS304) |
reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
30.0 | M169-68404N-RF | DXF | Please contact us | Please contact us | |
Note
1. allowable load is the maximum allowable load in a static state.
2. The fixing holes are not fully drilled to prevent foreign matter from accumulating. If fixing holes are required, please drill them using a punch and hammer as shown in the illustration.
Support Foot
[Click to enlarge]
| Model number | Material | allowable load kN |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|---|
| Foot | Bolts and nuts | |||||||

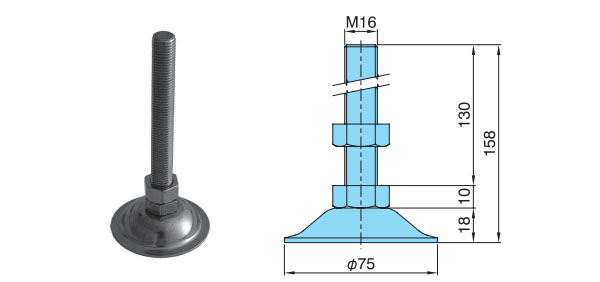

| TP-TA16SUS | Stainless steel | Stainless steel | 11 | DXF | Please contact us | Please contact us | 3DCAD | |
Note
1. This product is made to order.
[Click to enlarge]
| Model number | Material | allowable load kN |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|---|
| Foot | Bolts and nuts | |||||||

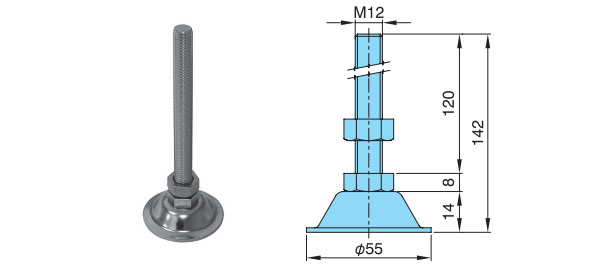

| TP-TB12SUS | Stainless steel | Stainless steel | 10 | DXF | Please contact us | Please contact us | 3DCAD | |
Note
1. This product is made to order.
