Bearing unit Major Specifications
Catalogs and Instruction Manuals
Diamond Flange unit (UCFL)

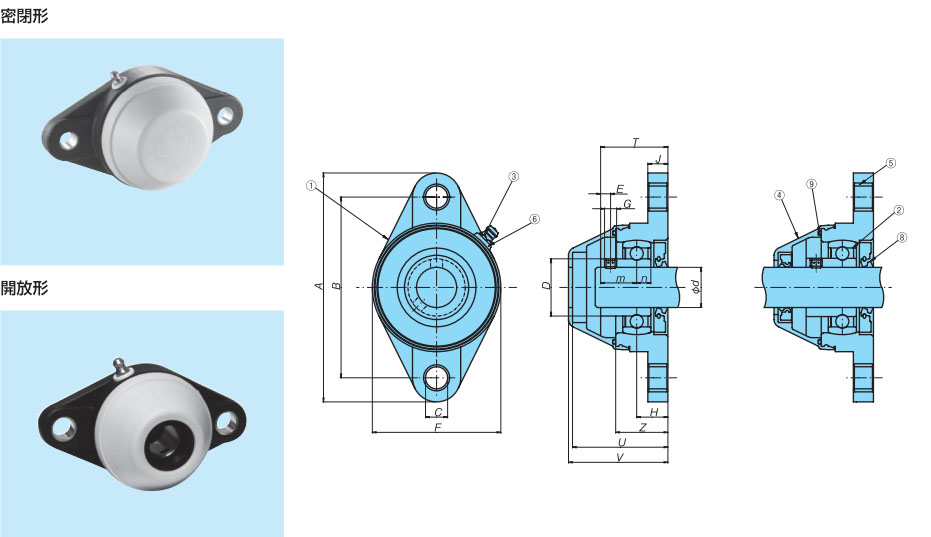

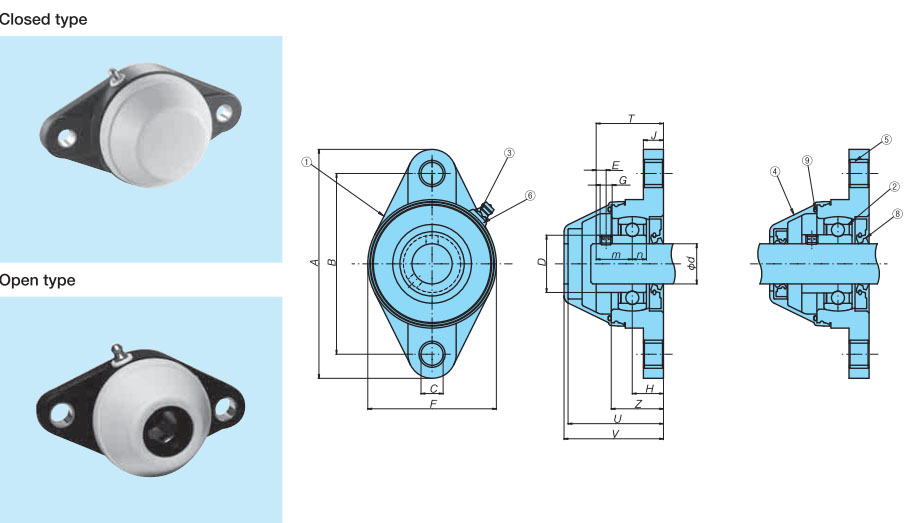

Sealed on both the front and back, it is effective in extending the life of bearings in wet or dusty environments.
[Click to enlarge]
| Part Number | Product name | Material |
|---|---|---|
| 1 | housing | reinforced polyamide |
| 2 | ball bearings | steel |
| 3 | Grease nipple | stainless |
| 4 | Safety Cap | polypropylene |
| 5 | Spacer bushing | Brass + Ni plating |
| Part Number | Product name | Material |
|---|---|---|
| 6 | Grease nipple washer | polyethylene |
| 8 | seal | NBR |
| 9 | O-ring | NBR |
| Model number | shape | Bearing Basic load rating kN |
Maximum body size allowable load kN |
mass kg |
self-aligning | Operating temperature range °C |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| (Basic) Dynamic Load Rating Cr |
(Basic) Static Load Rating Cor |
||||||||||
| TP-C54204NR-ECT-UCFL | Closed type | 9.9 | 6.6 | 7.5 | 0.21 | Housing and axis and maximum Angular Misalignment: 2.5° |
0～80 | DXF | Please contact us | Please contact us | |
| TP-C59204NR-ECT-UCFL | open type | DXF | Please contact us | Please contact us | |||||||
| TP-C54205NR-ECT-UCFL | Closed type | 10.8 | 7.8 | 8.0 | 0.31 | DXF | Please contact us | Please contact us | |||
| TP-C59205NR-ECT-UCFL | open type | DXF | Please contact us | Please contact us | |||||||
| Model number | size | MB equivalent product | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter d |
A | B | C | D | E | F | G | H | J | Z | T | m | n | U | V | ||
| TP-C54204NR-ECT-UCFL | 20 | 114 | 90 | 11 | 29 | 5 | 70 | M6× 0.75 |
15.5 | 10 | 26 | 33.5 | 18 | 7 | 47.5 | 49.5 | MB204C-64647-UCFL |
| TP-C59204NR-ECT-UCFL | MB204C-64657-UCFL | ||||||||||||||||
| TP-C54205NR-ECT-UCFL | 25 | 130 | 99 | 11 | 34 | 5.5 | 70 | M6× 0.75 |
17 | 12.5 | 29 | 36.5 | 19.5 | 7.5 | 52.2 | 54.2 | MB205C-68523-UCFL |
| TP-C59205NR-ECT-UCFL | MB205C-68533-UCFL | ||||||||||||||||
Note
1. The ball bearing is a set screw type.
2. The position of the grease nipple for the φ20 shaft diameter is different from the diagram above.
