角フランジ形ユニット (UCFQ)
Sealed on both the front and back, it is effective in extending the life of bearings in wet or dusty environments.

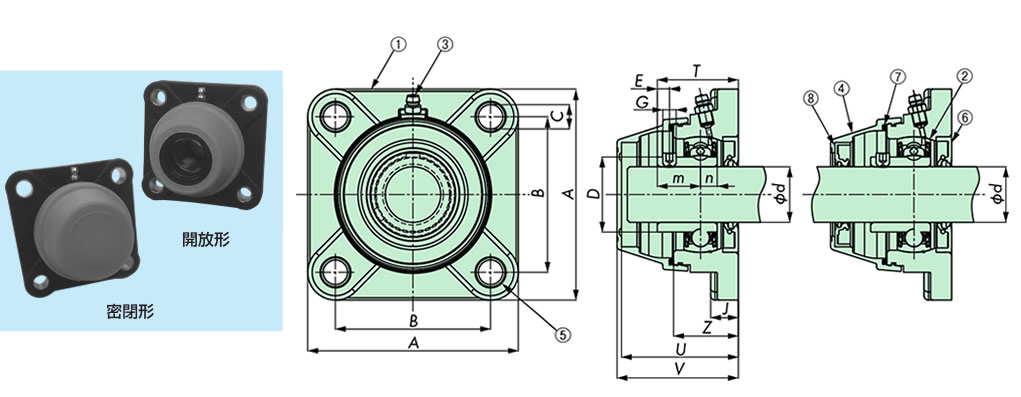

[Click to enlarge]
| Part Number | Product name | Material |
|---|---|---|
| 1 | housing | reinforced polyamide |
| 2 | ball bearings | Brass + Ni plating |
| 3 | Grease nipple | Brass + Ni plating |
| 4 | Safety Cap | polypropylene |
| 5 | Spacer bushing | Brass + Ni plating |
| Part Number | Product name | Material |
|---|---|---|
| 6 | seal | NBR |
| 7 | O-ring | NBR |
| 8 | seal | NBR |
| Model number | shape | Bearing Basic load rating kN |
Maximum body size allowable load kN |
mass kg |
self-aligning | Operating temperature range °C |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| (Basic) Dynamic Load Rating Cr |
(Basic) Static Load Rating Cor |
||||||||||
| TP-C50205VREC-UCFQ | Closed type | 10.8 | 7.8 | 11.5 | 0.3 | Housing and axis and maximum Angular Misalignment: 2.5° |
0～80 | DXF | Please contact us | Please contact us | |
| TP-C55205VREC-UCFQ | open type | DXF | Please contact us | Please contact us | |||||||
| TP-C50206VREC-UCFQ | Closed type | 15.0 | 11.3 | 11 | 0.5 | DXF | Please contact us | Please contact us | |||
| TP-C55206VREC-UCFQ | open type | DXF | Please contact us | Please contact us | |||||||
| TP-C50207VREC-UCFQ | Closed type | 19.7 | 15.3 | 10.5 | 0.6 | DXF | Please contact us | Please contact us | |||
| TP-C55207VREC-UCFQ | open type | DXF | Please contact us | Please contact us | |||||||
| TP-C50208VREC-UCFQ | Closed type | 22.4 | 17.9 | 10 | 0.8 | DXF | Please contact us | Please contact us | |||
| TP-C55208VREC-UCFQ | open type | DXF | Please contact us | Please contact us | |||||||
| Model number | size | MB equivalent product | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter d |
A | B | C | D | E | G | H | J | Z | T | m | n | U | V | ||
| TP-C50205VREC-UCFQ | 25 | 98 | 70 | 11 | 34 | 5.5 | M6× 1.00 |
15 | 12.5 | 29 | 36.5 | 19.5 | 7.5 | 52 | 54 | MB205C-64573-UCF |
| TP-C55205VREC-UCFQ | MB205C-64623-UCF | |||||||||||||||
| TP-C50206VREC-UCFQ | 30 | 110 | 83 | 11 | 40.3 | 6.5 | 18 | 22 | 8 | 51 | 53 | MB206C-63112-UCF | ||||
| TP-C55206VREC-UCFQ | MB206C-63172-UCF | |||||||||||||||
| TP-C50207VREC-UCFQ | 35 | 118 | 92 | 14 | 48 | 6.5 | M8× 1.00 |
20 | 16 | 33 | 41.5 | 23.5 | 8.5 | 64 | 66 | MB207C-64068-UCF |
| TP-C55207VREC-UCFQ | MB207C-64078-UCF | |||||||||||||||
| TP-C50208VREC-UCFQ | 40 | 130 | 101.5 | 14 | 53 | 7.0 | M8× 1.00 |
20 | 35 | 43 | 25 | 9 | 63 | 65 | MB208C-64667-UCF | |
| TP-C55208VREC-UCFQ | MB208C-64677-UCF | |||||||||||||||
Note
1. The ball bearing is a set screw type.
