Chain guide Major Specifications
Catalogs and Instruction Manuals
Spacer Washer (SP)
[Click to enlarge]
| Model number | Material | color | MB equivalent product | Operating temperature range °C |
DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|

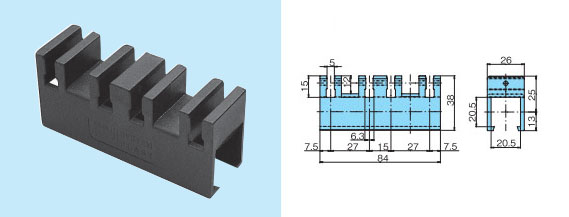

| TP-C14320T-SP | polyamide | black | MB523-643451-SP | -20～80 | DXF | Please contact us | Please contact us |
Note
1.Please use with the TP-C19067VT-PR dedicated rail.
2.Please install on a 20x20 square shaft.
[Click to enlarge]
| Model number | Material | color | MB equivalent product | Operating temperature range °C |
DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|

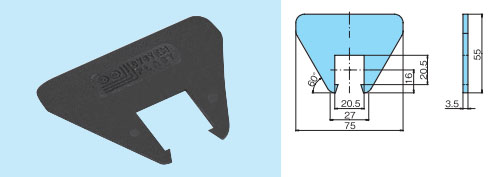

| TP-C14322T-WS | polyamide | black | MB533-672801-WS | -20～80 | DXF | Please contact us | Please contact us |
Note
1. Use this when using multiple strand Top chain. It prevents interference between chains.
2. Use in combination with TP-C14320T-SP (spacer).
[Click to enlarge]
| Model | Standard length | Material | color | MB equivalent product | Operating temperature range °C |
DXF Drawing data |
標準価格／1m | Delivery |
|---|---|---|---|---|---|---|---|---|

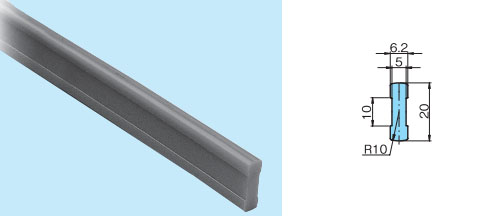

| TP-C19067VT-PR | 60m | Ultra-high molecular weight polyethylene | green | MB524-643501-PR | -20～60 | DXF | Please contact us | Please contact us |
Note
1. This is a rail exclusively for the TP-C14320T-SP (spacer). Order length: Sold in meters.
2. If the rails become worn, you can extend their lifespan by swapping them over.
