Chain guide Major Specifications
Catalogs and Instruction Manuals
Sliding shoe (SD)
[Click to enlarge]

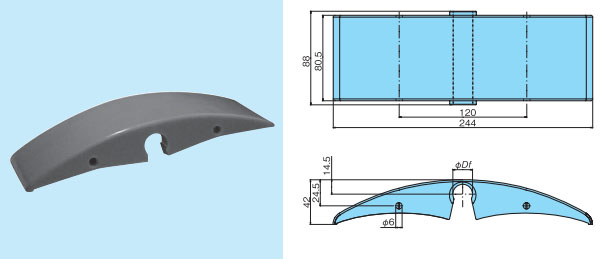

| Model number | Shaft Hole Diameter Df |
Material | color | Applicable | MB equivalent product | DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| TP-C14833BT-SD | 20.5 | polyethylene | black | Width 82.6mm For Top chain |
MB153-684221N-SD MB153-684221N1-SD |
DXF | Please contact us | Please contact us |
Note
1. Use with accumulation chains and roller tables.
2. Assemble onto a φ20 round bar.
3. Use the chain at a speed of 50 m/min or less.
[Click to enlarge]

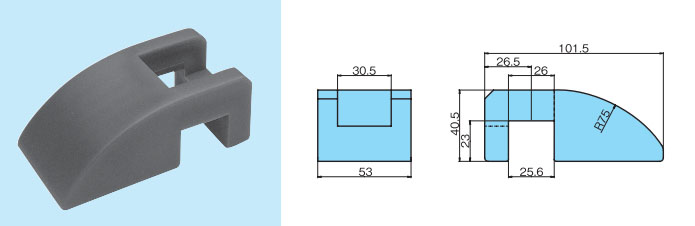

| Model number | Material | color | Applicable | MB equivalent product | Operating temperature range °C |
DXF Drawing data |
標準価格 | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| TP-C14343T-SD | polyethylene | green | Slat width 82.6mm For Top chain |
MB729-697662-SD | -20～60 | DXF | Please contact us | Please contact us |
Note
1.Please attach to TP-C14320T-SP and use.
