Frame support parts Major Specifications
Catalogs and Instruction Manuals
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Support Base (SB)
Supports the base of the conveyor.
[Click to enlarge]
| Model number | Material | Pipe outer diameter used mm (nominal diameter) Df |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | |||||||

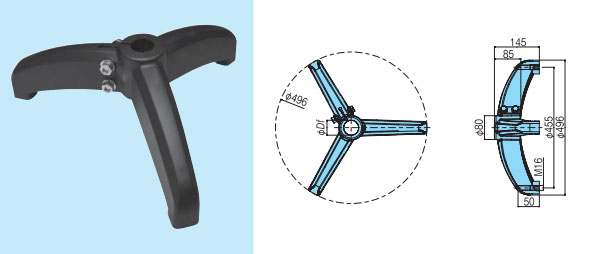

| TP-C15084T-SB | reinforced polyamide | stainless steel | Brass | 48.6 (1½) | MB615-600373-SB | DXF | Please contact us | Please contact us | |
| TP-C15088T-SB | reinforced polyamide | stainless steel | Brass | 60.5 (2) | MB615-699992-SB | DXF | Please contact us | Please contact us | |
| TP-C15084TSS-SB | reinforced polyamide | stainless steel | stainless steel | 48.6 (1½) | MB615-604583-SB | DXF | Please contact us | Please contact us | |
| TP-C15088TSS-SB | reinforced polyamide | stainless steel | stainless steel | 60.5 (2) | MB615-600453-SB | DXF | Please contact us | Please contact us | |
[Click to enlarge]
| Model number | Material | Pipe outer diameter used mm (nominal diameter) Df |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | |||||||

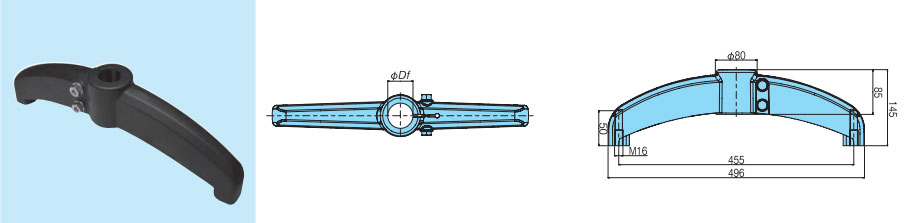

| TP-C15060T-SB | reinforced polyamide | stainless steel | Brass | 48.6 (1½) | MB618-600383-SB | DXF | Please contact us | Please contact us | |
| TP-C15064T-SB | reinforced polyamide | stainless steel | Brass | 60.5 (2) | MB618-600223-SB | DXF | Please contact us | Please contact us | |
| TP-C15060TSS-SB | reinforced polyamide | stainless steel | stainless steel | 48.6 (1½) | MB618-604593-SB | DXF | Please contact us | Please contact us | |
| TP-C15064TSS-SB | reinforced polyamide | stainless steel | stainless steel | 60.5 (2) | MB618-600403-SB | DXF | Please contact us | Please contact us | |
[Click to enlarge]
| Model number | Material | Pipe outer diameter used mm (nominal diameter) Df |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | |||||||

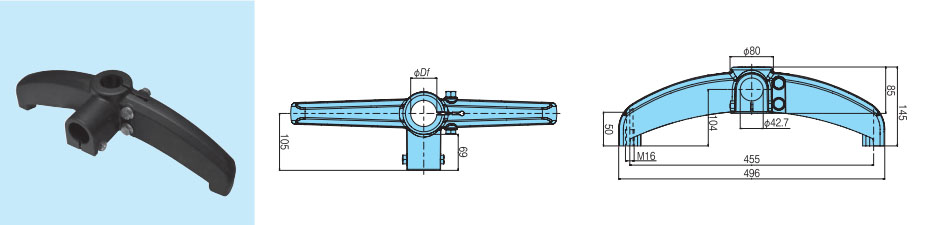

| TP-C15068T-SB | reinforced polyamide | stainless steel | Brass | 48.6 (1½) | MB619-600413-SB | DXF | Please contact us | Please contact us | |
| TP-C15072T-SB | reinforced polyamide | stainless steel | Brass | 60.5 (2) | MB619-600423-SB | DXF | Please contact us | Please contact us | |
| TP-C15068TSS-SB | reinforced polyamide | stainless steel | stainless steel | 48.6 (1½) | MB619-604573-SB | DXF | Please contact us | Please contact us | |
| TP-C15072TSS-SB | reinforced polyamide | stainless steel | stainless steel | 60.5 (2) | MB619-600433-SB | DXF | Please contact us | Please contact us | |
[Click to enlarge]
| Model number | Material | Load-bearing capacity kN |
Bolts and nuts Tightening torque N･m |
DXF Drawing data |
Price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | ||||||||

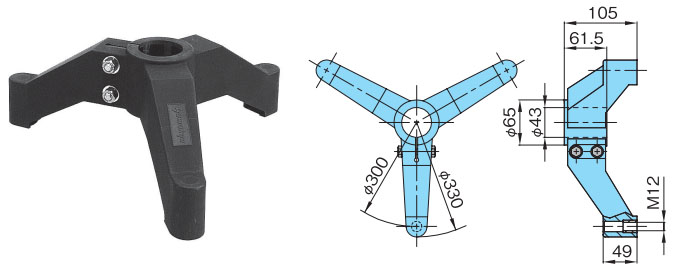

| TP-3SB43 | reinforced polyamide | Stainless steel | Brass + Ni plating | 2.45 | 9.8 | DXF | Please contact us | Please contact us | 3DCAD | |
[Click to enlarge]
| Model number | Material | Load-bearing capacity kN |
Bolts and nuts Tightening torque N･m |
DXF Drawing data |
Price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | ||||||||

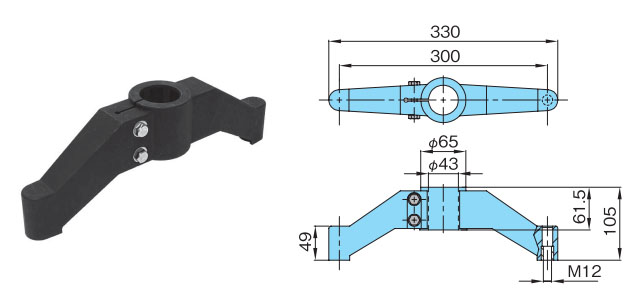

| TP-2SB43 | reinforced polyamide | Stainless steel | Brass + Ni plating | 2.45 | 9.8 | DXF | Please contact us | Please contact us | 3DCAD | |
[Click to enlarge]
| Model number | Material | DF | Load-bearing capacity kN |
Bolts and nuts Tightening torque N･m |
DXF Drawing data |
Price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | Bush | |||||||||

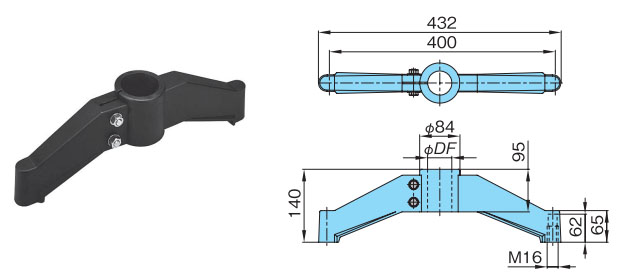

| TP-2SB48 | reinforced polyamide | Stainless steel | Brass + Ni plating | 48.6 | 3.43 | 14.7 | DXF | Please contact us | Please contact us | 3DCAD | |
| TP-2SB60 | reinforced polyamide | Stainless steel | Brass + Ni plating | 60.5 | 3.43 | 14.7 | DXF | Please contact us | Please contact us | ||
