Modular Transfer Roller Plate (MTRP)
Installing rollers at the transfer points between conveyors prevents items from remaining at the transfer points. The rolling of the rollers also reduces resistance at the transfer points, reducing the risk of items tipping over.
[Click to enlarge]
| Model number | Material | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|
| Main body, roller | Pins and bolts | ||||||

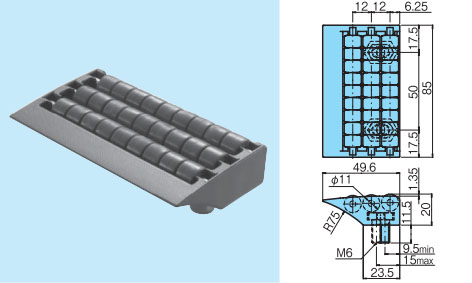

| TP-C16770ST-MTRP | Low-friction polyacetal | stainless steel | MB567-688812-MTRP | DXF | Please contact us | Please contact us | |
[Click to enlarge]
| Model number | Material | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|
| Main body, roller | Pins and bolts | ||||||

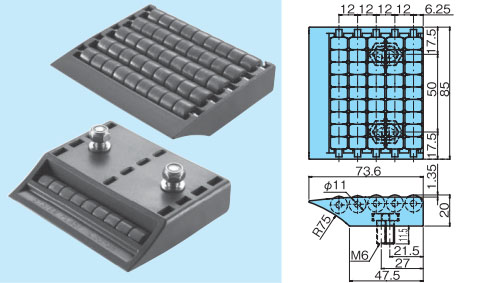

| TP-C16772ST-MTRP | Low-friction polyacetal | stainless steel | - | DXF | Please contact us | Please contact us | |
