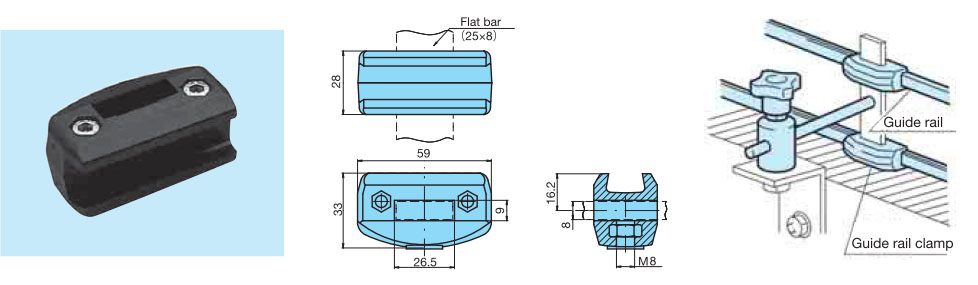

guide channel Clamp (GRC)
Use to secure guide channel.
[Click to enlarge]
| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt | nut | ||||||||
| TP-C13007T-GRC | reinforced polyamide | stainless steel | Brass + Ni plating | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
Flat bar 25×8 |
MB580-603292-ARG | DXF | Please contact us | Please contact us | |
[Click to enlarge]

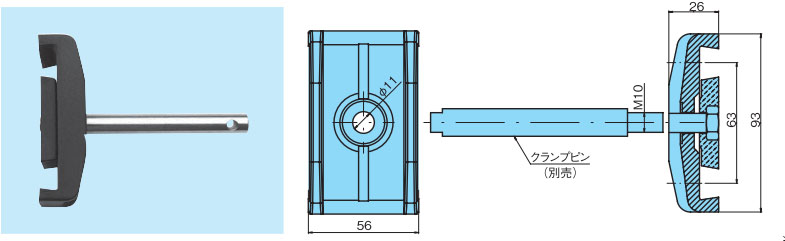

| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|
| Main unit | ||||||||

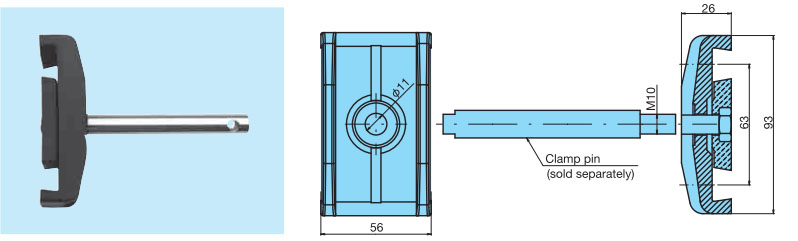

| TP-C13008NVT-GRC | reinforced polyamide | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
Clamp pin | MB213-60101-GRC | DXF | Please contact us | Please contact us |
[Click to enlarge]
| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt | nut | ||||||||

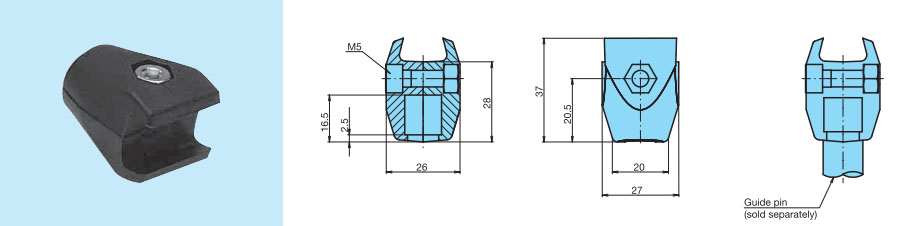

| TP-C13006NVT-GRC | reinforced polyamide | stainless steel | Brass + Ni plating | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
Guide pin | MB210-59941-GRC | DXF | Please contact us | Please contact us | |
Note
1. This clamp tightens more strongly than the TP-C13012T-GRC clamp. Use it in places where pressure is strong on the rail (corners, accumulation lines, etc.).
[Click to enlarge]
| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|
| Main unit | ||||||||
| TP-C13012T-GRC | reinforced polyamide | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
Bracket pin Φ14 |
MB275-66811-GRC | DXF | Please contact us | Please contact us |
[Click to enlarge]
| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|

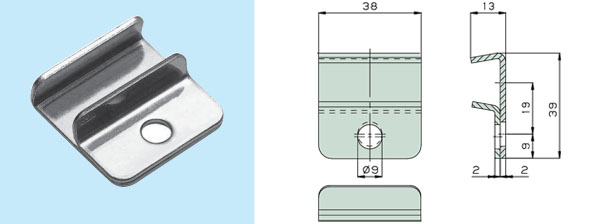

| TP-C13014T-GRC | stainless steel | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
frame | MB215-60121-GRC MB215-65976-GRC |
DXF | Please contact us | Please contact us |
[Click to enlarge]
| Model number | Material | Applicable guide channel | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|
| TP-C13120T-GRC | stainless steel | TP-C19S00130-3MT-GR TP-C19S00165-3MT-GR |
MB214-60111-GRC | DXF | Please contact us | Please contact us |

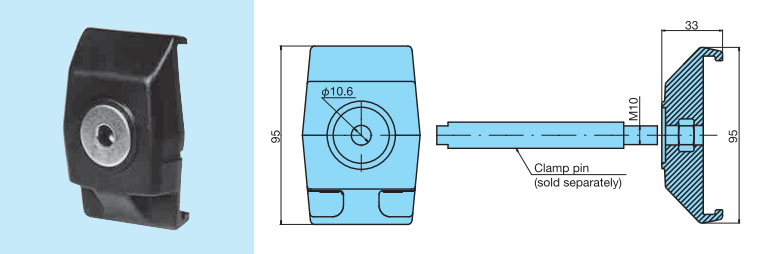

guide channel Clamp (TP-C19050LT-GR Only) (GRC)
[Click to enlarge]
| Model number | Material | Applicable guide channel | The mating material to be fixed | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|
| Main unit | Nuts and washers | ||||||||
| TP-C13718T-GRC | reinforced polyamide | stainless steel | TP-C19050LT-GR | Clamp pin | MB298-60362-GRC | DXF | Please contact us | Please contact us | |

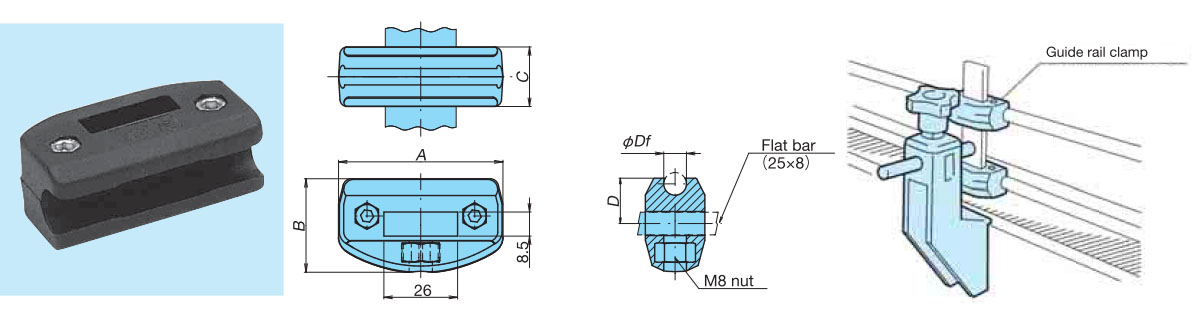

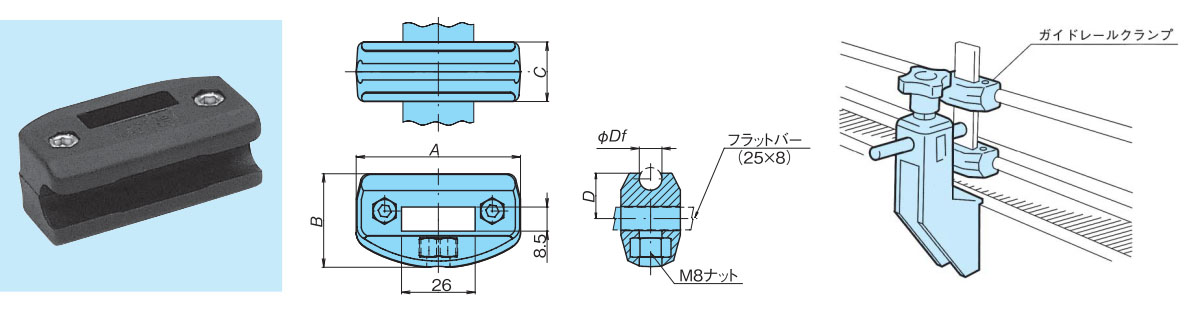

guide channel Clamp (for round bars) (GRC)
Use to secure round bar guides.
[Click to enlarge]
| Model number | Material | Flat bar | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|
| Main unit | bolt | nut | ||||||
| TP-C13743T-GRC | reinforced polyamide | stainless steel | Brass + Ni plating | 25×8 | DXF | Please contact us | Please contact us | |
| TP-C13741T-GRC | DXF | Please contact us | Please contact us | |||||
| TP-C13744NVT-GRC | DXF | Please contact us | Please contact us | |||||
| Model number | Df | A | B | C | D | MB equivalent product |
|---|---|---|---|---|---|---|
| TP-C13743T-GRC | 8 | 58 | 33 | 21 | 16 | MB159-6912-GRC |
| TP-C13741T-GRC | 10 | 58 | 33 | 21 | 16 | MB159-63389-GRC |
| TP-C13744NVT-GRC | 12 | 59 | 34.5 | 24 | 19 | MB159-6913-GRC |
[Click to enlarge]

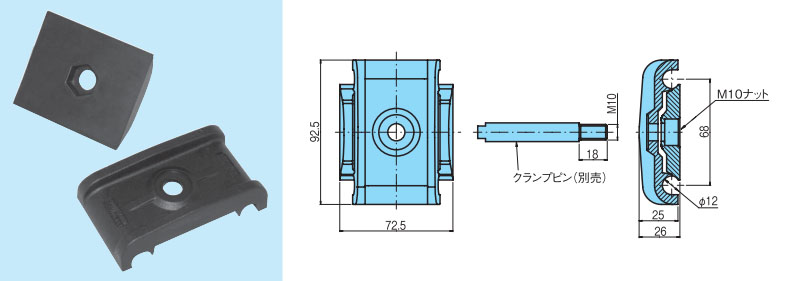

| Model number | Material | Usable round bars | MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|
| Main unit | Nuts and washers | |||||||

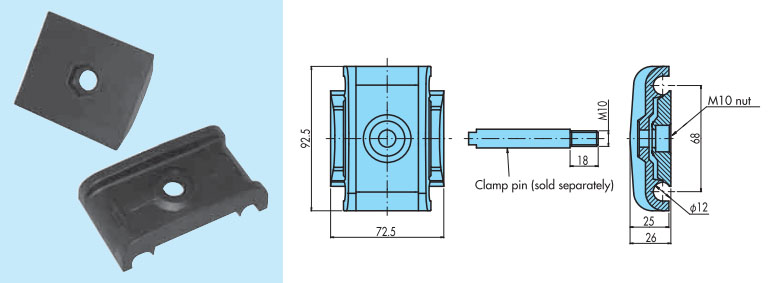

| TP-C13761XPT-GRC | reinforced polyamide | stainless steel | Φ12 | MB70-5095-GRC | DXF | Please contact us | Please contact us | |

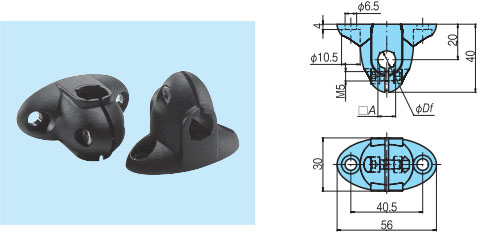

T-clamp (TC)
[Click to enlarge]
| Model number | Material | Φ Df | □ A | bolt Tightening torque |
Pin's Tolerance load (holding force) |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt, nut |
||||||||||
| TP-C13152T-TC | reinforcement polyamide |
stainless steel | Φ10 | 8 | 2.94N･m | 49.0N | MB339-68363-TC | DXF | Please contact us | Please contact us | |
| TP-C13115T-TC | Φ12 | 10 | MB339-68375-TC | DXF | Please contact us | Please contact us | |||||
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | ||||||

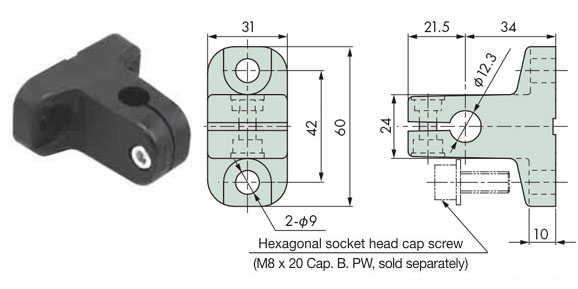

| TP-TC | reinforced polyamide | Stainless steel | DXF | Please contact us | Please contact us | 3DCAD | |

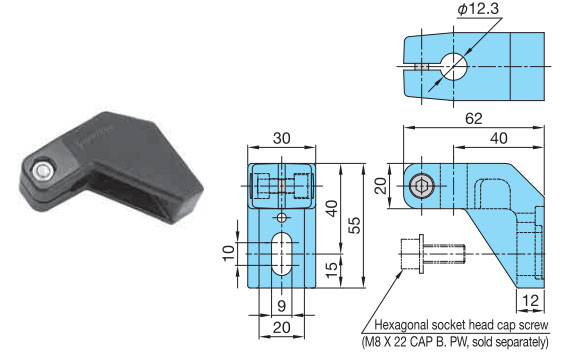

L-shaped clamp
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | ||||||
| TP-LC | reinforced polyamide | Stainless steel | DXF | Please contact us | Please contact us | 3DCAD | |
Cross Block (CC)
Use in conjunction with T-clamps or photo sensor clamps to install guides and sensors.
[Click to enlarge]
| Model number | Material | Φ DP |
□A | bolt Tightening torque |
Pin's Tolerance load (holding force) |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | nut, Washer |
||||||||||
| TP-C13S00114T-CC | Polya Setar |
stainless steel | Φ10 | 8 | 2.94N･m | 49.0N | MB340-68373-CC | DXF | Please contact us | Please contact us | |
| TP-C13S00115T-CC | Φ12 | 10 | MB340-68385-CC | DXF | Please contact us | Please contact us | |||||
| TP-C13S00116T-CC | Φ14 | 12 | MB340-67375-CC | DXF | Please contact us | Please contact us | |||||
Note
1. Be sure to check the above table for model number comparisons of MB equivalent products.
[Click to enlarge]

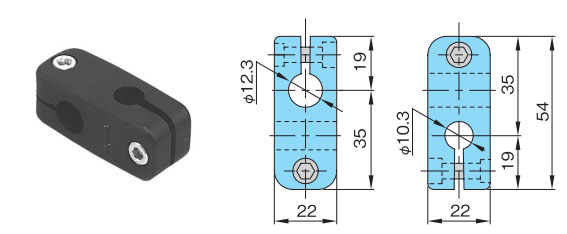

| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | ||||||
| TP-CRB | reinforced polyamide | Stainless steel | DXF | Please contact us | Please contact us | 3DCAD | |

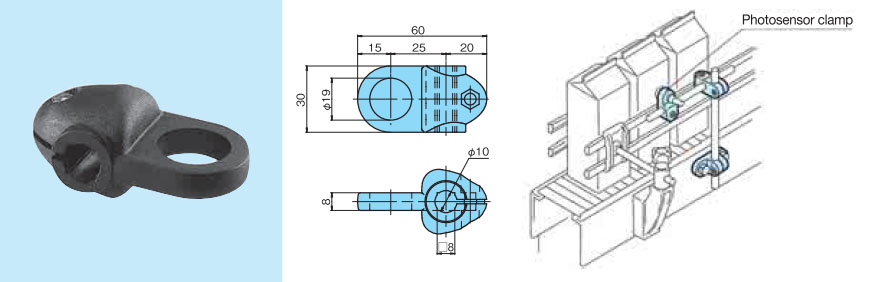

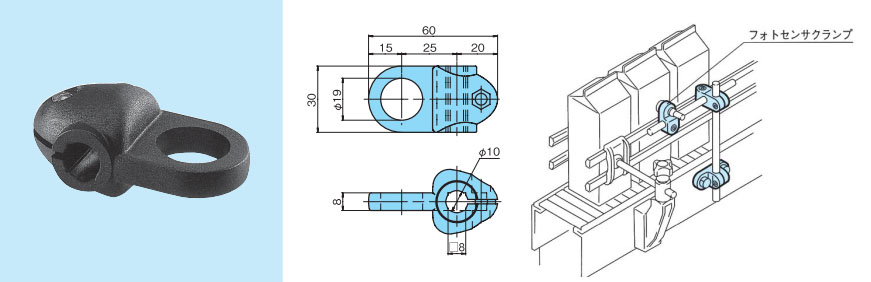

Photo Sensor Clamp (FSC)
Use in conjunction with a cross block or T-clamp to install the sensor.
[Click to enlarge]
| Model number | Material | bolt Tightening torque |
Pin's Tolerance load (holding force) |
MB equivalent product | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|
| Main unit | nut, Washer |
||||||||
| TP-C13153T-FSC | reinforced polyamide | stainless steel | 2.94N･m | 49.0N | MB341-68383-FSC | DXF | Please contact us | Please contact us | |

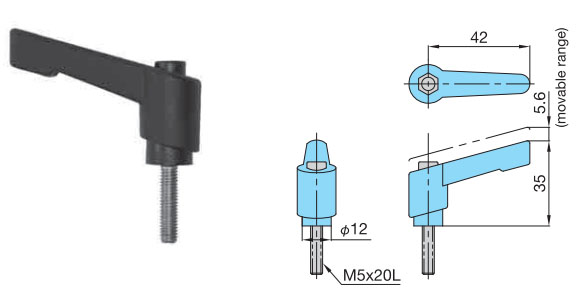

Clamp lever
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD | |
|---|---|---|---|---|---|---|---|
| Main unit | Bolts and nuts | ||||||
| TP-CL | reinforced polyamide | Stainless steel | DXF | Please contact us | Please contact us | 3DCAD | |
Note
1. This product is made to order.
Guide channel Clamp
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD |
|---|---|---|---|---|---|---|

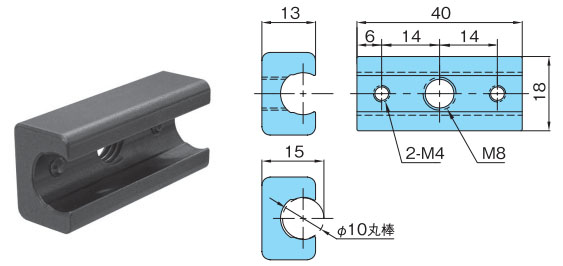

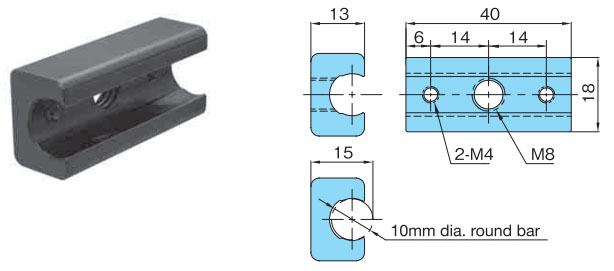

| TP-GHB | Stainless steel (sintering) |
DXF | Please contact us | Please contact us | 3DCAD |
Note
1. This product is made to order.
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
3DCAD |
|---|---|---|---|---|---|---|

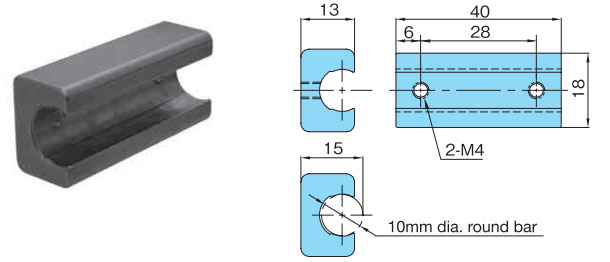

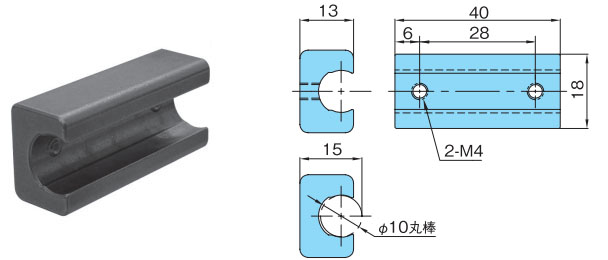

| TP-GHA | Stainless steel (sintering) |
DXF | Please contact us | Please contact us | 3DCAD |
Note
1. This product is made to order.
