guide channel (GR)
Use this to prevent transported items from tipping over and reduce scratches.
[Click to enlarge]
| Model number | Standard length | Material | color | mass kg/m |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| TP-C19S00130-3MT-GR | 3m | Ultra-high molecular weight polyethylene Stainless steel frame |
white | 0.6 | MB317-69072-GR | DXF | Please contact us | Please contact us |
[Click to enlarge]
| Model number | Standard length | Material | color | mass kg/m |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

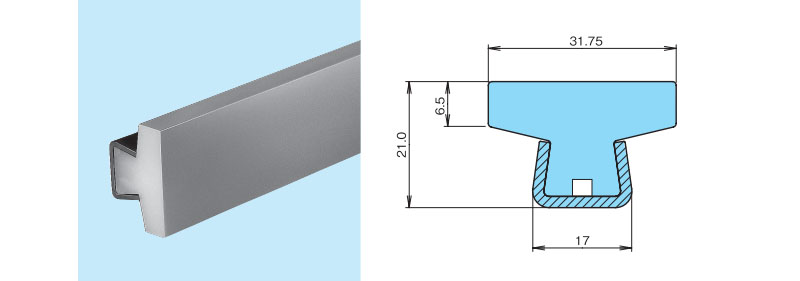

| TP-C19S00165-3MT-GR | 3m | Ultra-high molecular weight polyethylene Stainless steel frame |
white | 0.86 | MB273-66791-GR | DXF | Please contact us | Please contact us |
[Click to enlarge]
| Model number | Standard length | Material | color | mass kg/m |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|---|---|

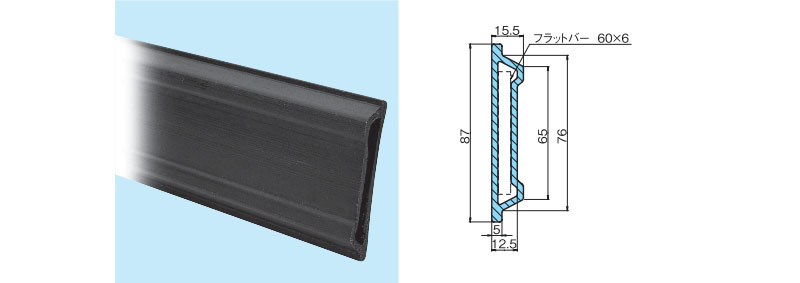

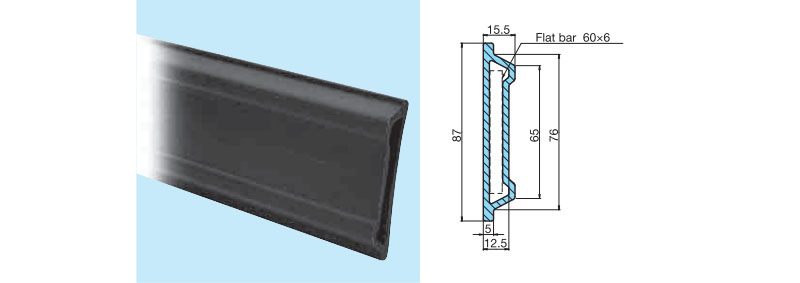

| TP-C19050LT-GR | 3m | Ultra-high molecular weight polyethylene | black | 0.6 | MB296-68811-GR | DXF | Please contact us | Please contact us |
Roller module side guide (curved type) (ARG)
Reduces scratches on transported items on curved sections.
[Click to enlarge]
| Model number | Standard length mm |
Material | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|
| frame | Rollers and pins | |||||||

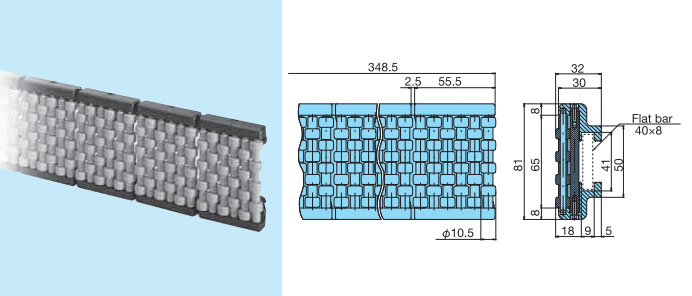

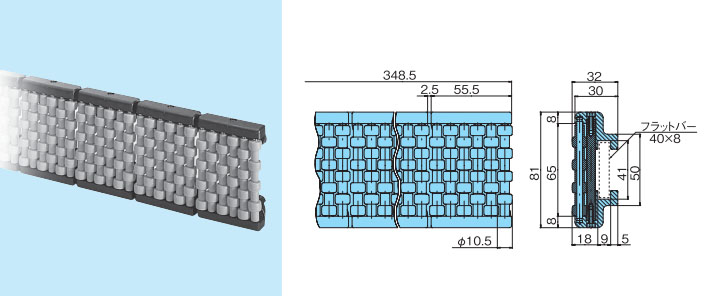

| TP-C16801KT-ARG | 348.5 | reinforced polyamide | Polyacetal | MB580-603292-ARG | DXF | Please contact us | Please contact us | |
Note
1. Minimum lateral bending radius: Inner R250, outer R300
Use with 2.40x8 flat bar.
