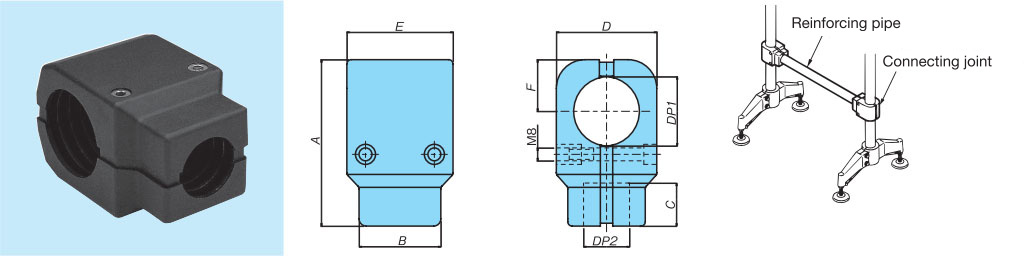

Connecting Joint (CJ)
The conveyor is stabilized by connecting the two conveyor legs.
[Click to enlarge]
| Model number | Material | Pipe outer diameter used mm (nominal diameter) |
DXF Drawing data |
Standard price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|
| Main unit | bolt | Bush | ||||||
| TP-C14733T-CJ | reinforced polyamide | Stainless steel (SUS304) | Brass | 48.6 & 42.7 (1½ & 1¼) |
DXF | Please contact us | Please contact us | |
| TP-C14746T-CJ | reinforced polyamide | Stainless steel (SUS304) | Brass | 60.5 & 42.7 (2 & 1¼) |
DXF | Please contact us | Please contact us | |
| Model number | DP1 | DP2 | A | B | C | D | E | F | MB equivalent product |
|---|---|---|---|---|---|---|---|---|---|
| TP-C14733T-CJ | 48.6 | 42.7 | 122 | 62 | 40 | 78 | 78 | 39 | MB137-66813-CJ |
| TP-C14746T-CJ | 60.5 | 42.7 | 130 | 65 | 41 | 82 | 82 | 42.5 | MB137-6502-CJ |
