Major Specifications of Top chain accessories

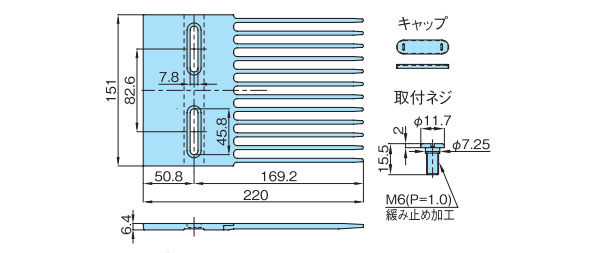

Transfer plate for WT5707: WT-TP5707-L220
[Click to enlarge]
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
WT5707-K
Major Specifications
| Model number | Plate Length mm |
Plate Material | color | Approximate Mass kg |
DXF Drawing data |
Standard price | Delivery |
|---|---|---|---|---|---|---|---|
| WT-TP5707-L220 | 220 | polypropylene | black | 0.17 | DXF | Please contact us | Please contact us |
Note
1. This product is made to order.
2. Each transfer plate comes with two caps and two mounting screws.
