Major Specifications of Top chain accessories

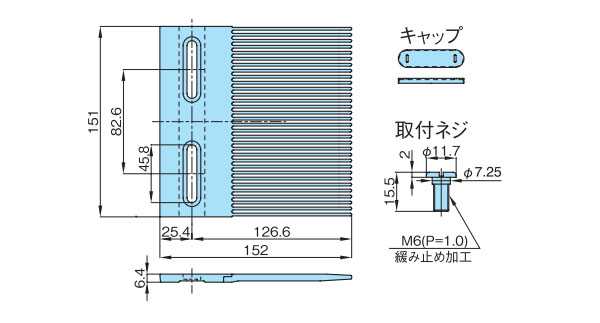

Transfer plate for WT3827: WT-TP3827-L152
[Click to enlarge]
*This is a reference image.
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
WT3827-K
Major Specifications
| Model number | Plate Length mm |
Plate Material | color | Approximate Mass kg |
DXF Drawing data |
標準価格 | Delivery |
|---|---|---|---|---|---|---|---|
| WT-TP3827-L152 | 152 | Polyacetal | white | 0.12 | DXF | Please contact us | Please contact us |
Note
1. This product is made to order.
2. Each transfer plate comes with two caps and two mounting screws.
