Major Specifications of Top chain accessories

Nose bar bearing type for WT1500: WT-NR


[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing

Please refer to the table below

DXF Drawing data

Please refer to the table below
(Click here for a list of DXF data)

3D CAD data

Go to the CADENAS WEB2CAD website

※ 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※ For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD.
Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Applicable chain

WT1505GTO-K, WT1505GTO-M, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K

Major Specifications

Model number Material Grade bearings Shaft material 標準価格 Delivery DXF Drawing data
PDF outline drawing
WT-NR151 10-301 ball stainless
steel		 Please contact us Please contact us DXF PDF
WT-NR76 ball Please contact us Please contact us DXF PDF
WT-NR76-TO needle Please contact us Please contact us DXF PDF

Note
1. This product is made to order.

About the material
Material Grade Material Appearance color Purpose
10-301 Ultra-high molecular weight polyethylene green Ideal for water and slider liquid lubrication operation.

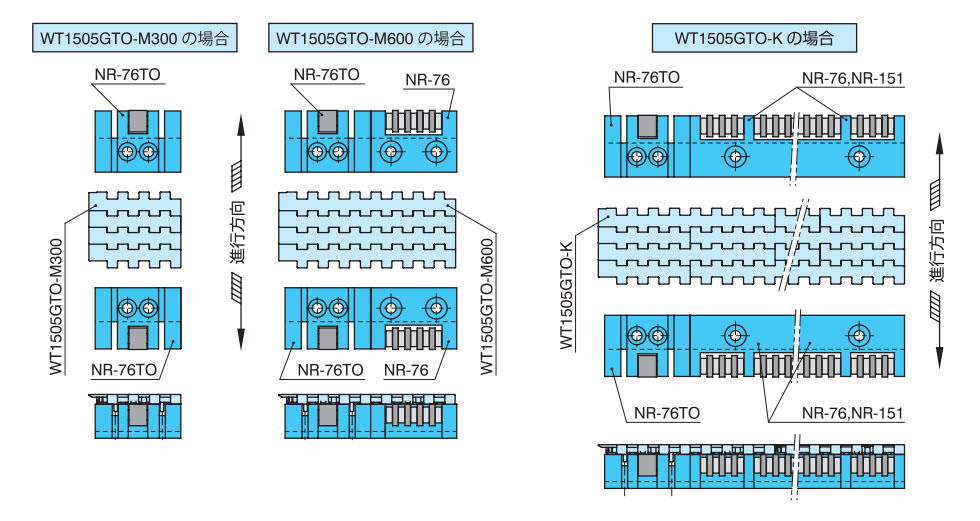

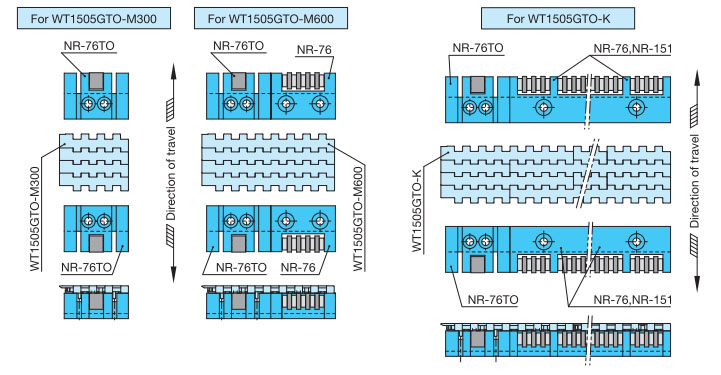

Layout example


[Click to enlarge]
