Major Specifications of Top chain accessories
Sliding nose bar type for WT1300/WT1500/1510 series: WT-NB
[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing
Please refer to the table below
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
3D CAD data
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Catalogs and Instruction Manuals
Applicable chain
WT1306-W, WT1515VG-W, WT1515-W, WT1516-W, WT1505GTO-K, WT1505GTO-M, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K
Major Specifications
| Model number | Material Grade | 標準価格 | Delivery | DXF Drawing data PDF outline drawing |
|
|---|---|---|---|---|---|
| WT-NB76-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB76-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB76-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB151-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB151-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB151-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB302-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB302-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB302-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB151TOL-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB151TOL-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB151TOL-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB151TOR-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB151TOR-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB151TOR-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB50-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB50-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB50-CNO | SJ-CNO | Please contact us | Please contact us | ||
| WT-NB99-10-301 | 10-301 | Please contact us | Please contact us | DXF | |
| WT-NB99-10-100M9 | 10-100M9 | Please contact us | Please contact us | ||
| WT-NB99-CNO | SJ-CNO | Please contact us | Please contact us | ||
Note
1. Operating temperature range: 10-301, 10-100M9: -20°C to 60°C, SJ-CNO (special polyamide): -20°C to 80°C
2. Allowable speed 10-301: 50 m/min or less with lubrication, 30 m/min or less without lubrication, 10-100M9: 30 m/min or less without lubrication, SJ-CNO (special polyamide): 50 m/min or less
3. SJ-CNO (special polyamide) is for use in dry environments only.
4. Regarding the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370), special polyamide (SJ-CNO) does not comply with the Food Sanitation Act.
5. When installing, use low-head bolts, flat washers, and spring washers, and apply anti-loosening agent to the threads.
6. The WT1306-W type can only be used with WT-NB50-10-301, WT-NB50-10-100M9, WT-NB50-CNO, WT-NB99-10-301, WT-NB99-10-100M9, and WT-NB99-CNO.
| Material Grade | Material | Appearance color | Purpose |
|---|---|---|---|
| 10-301 | Ultra-high molecular weight polyethylene | green | Ideal for water and slider liquid lubrication operation. |
| 10-100M9 | Ultra-high molecular weight polyethylene (oil-containing product) | white | Ideal for dry driving with low load and low speed. |
| SJ-CNO | Special Polyamide | purple | Ideal for high load, high speed, dry driving. |

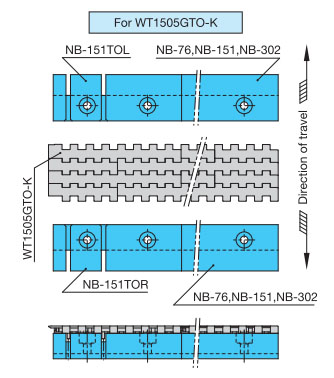

Layout example
[Click to enlarge]
