Major Specifications of Top chain accessories

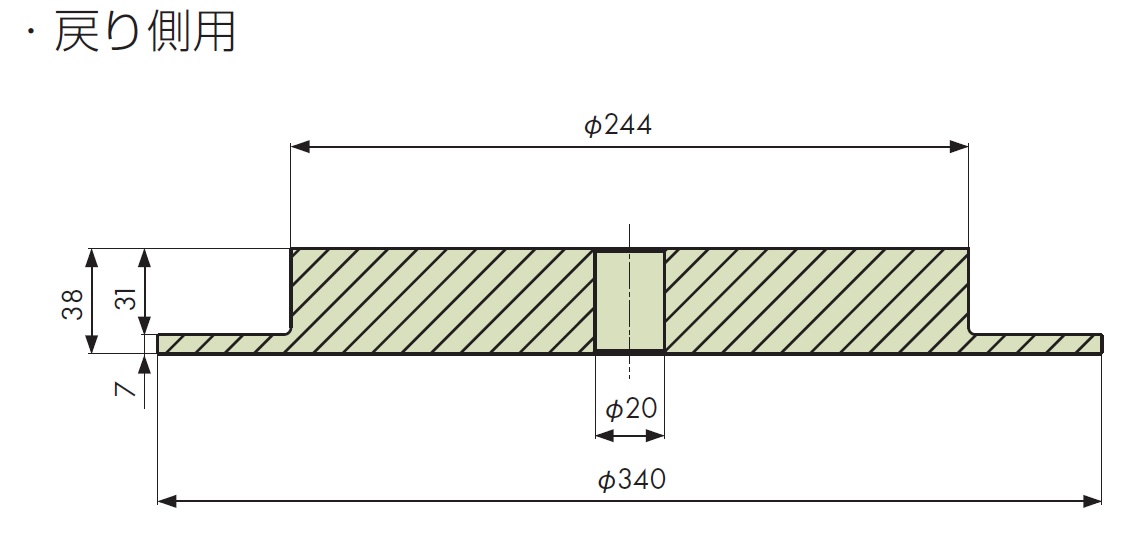

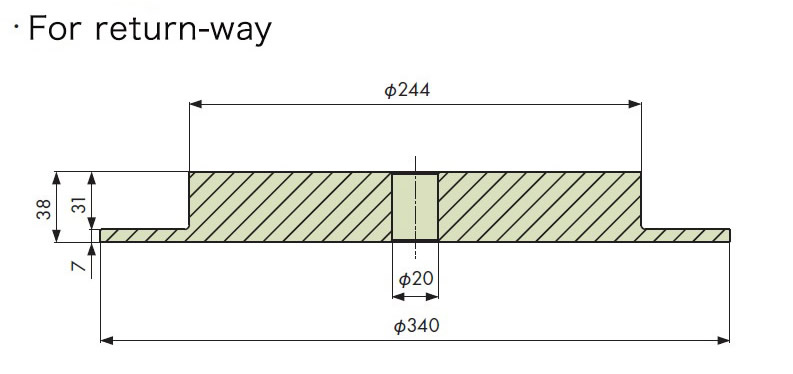

TPUN555専用コーナディスク：TPUN555-CD-R150R
[Click to enlarge]
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TP-50UNS, TP-50UNS-D76, TPUN
Major Specifications
| Applicable | For transport side | For the return side |
|---|---|---|
| Model number | TPUN555-CD-R150C | TPUN555-CD-R150R |
| Material | Made from ultra-high molecular weight polyethylene | |
| Appearance color | white | |
| Approximate mass kg | 2.1 | |
| Chain side bending radius mm | R150 | |
| Operating temperature range ℃ | -20～60 | |
| DXF Drawing data | DXF | DXF |
| Standard price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
注記
1.ご注文生産品です。
2.上図以外の寸法、ベアリング付、抗菌剤入り超高分子量ポリエチレン製のもの等をご要望の場合は、お問い合わせください。
