Major Specifications of Top chain accessories
Turn disc for TP-UB36: TP-UB36TW-D
[Click to enlarge]

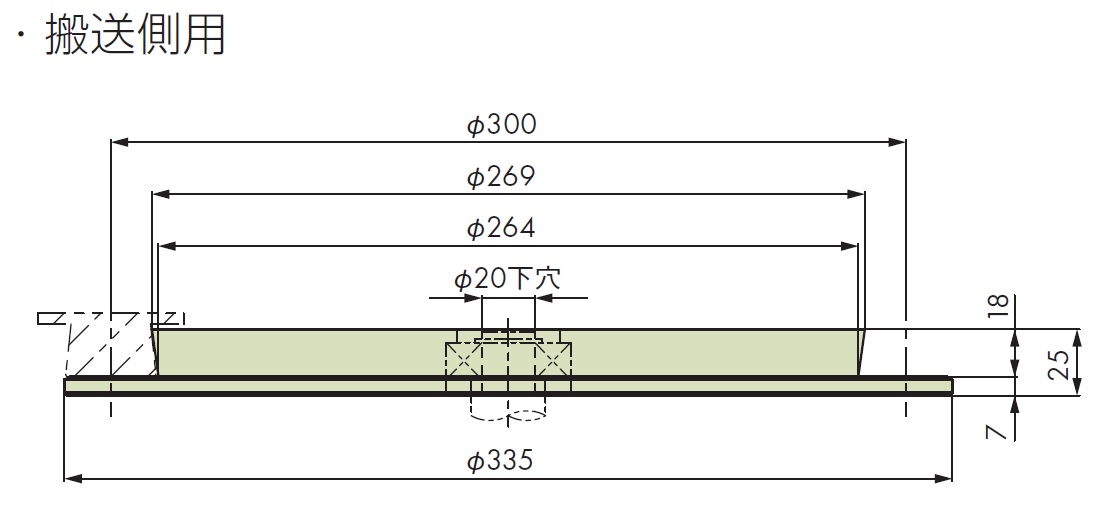

*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TP-UB36, TP-UB36P
Major Specifications
| Applicable | sender | Return-way |
|---|---|---|
| Model number | TP-UB36TW-D | TP-UB36TW-R |
| Material | Made from ultra-high molecular weight polyethylene | |
| Material Grade | 10-100 | |
| Appearance color | white | |
| DXF Drawing data | DXF | DXF |
| 標準価格 | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. This product is made to order.
2. We can also manufacture bearing-equipped products upon consultation.
