TPUH-BO専用コーナディスク：TP-C12779T-CD
[Click to enlarge]

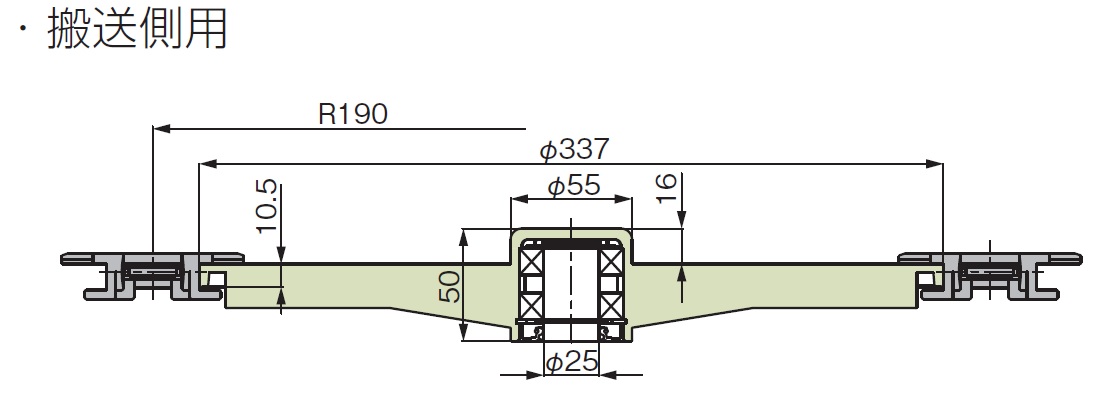

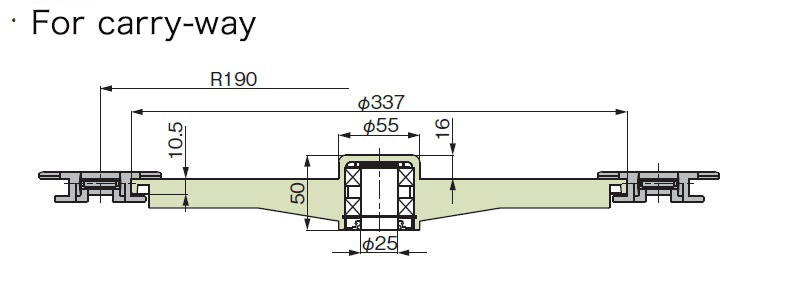

PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TPUH-BO
Major Specifications
| Applicable | For transport side | For the return side |
|---|---|---|
| Model number | TP-C12779T-CD | TP-C12777T-CD |
| Body material | Made from polyamide | |
| Body color | black | |
| bearing | 6005-2RS (25×47×12) | |
| Seal Ring Material | NBR rubber | |
| Shaft retaining ring | Φ25 (DIN471) | |
| Approximate mass kg | 0.98 | |
| Chain side bending radius mm | R190 | |
| Operating temperature range ℃ | -20～60 | |
| DXF Drawing data | DXF | DXF |
| Standard price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. Not recommended for transporting unstable containers.
2. The only difference between the transport side and return side is whether the shaft can be passed through.
3. Bearings, seal rings, etc. will be shipped separately from the disc body.
