Major Specifications of Top chain accessories
TPUN-LH exclusive corner disc: TP-C12725T-CD
[Click to enlarge]
*This is a reference image.

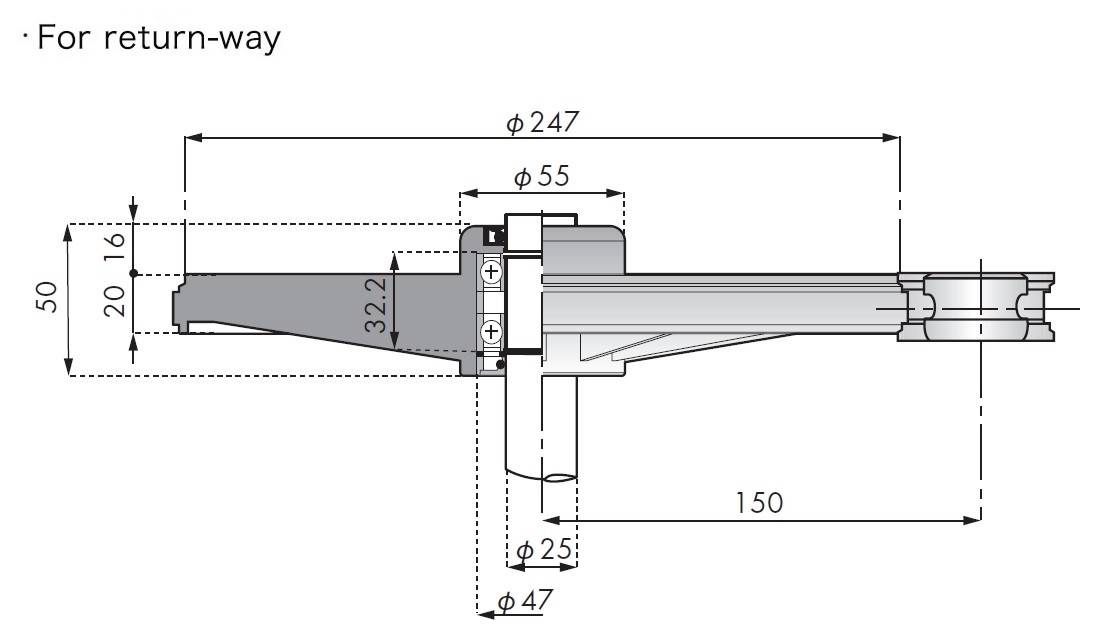

PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TPUN535-LH, TPUN550-LH
Major Specifications
| Applicable | For transport side | For the return side |
|---|---|---|
| Model number | TP-C12723T-CD | TP-C12725T-CD |
| Material | reinforced polyamide | |
| Appearance color | black | |
| Bearing Material | steel | |
| Chain side bending radius mm | R150 | |
| DXF Drawing data | DXF | DXF |
| 標準価格 | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. The only difference between the conveyor-side and return-side versions is whether or not the shaft can pass through.
2. Bearings, seal rings, etc. will be shipped separately from the disc body.
