Major Specifications of Top chain accessories
TPUN-LH専用コーナディスク：TP-C12723T-CD
[Click to enlarge]

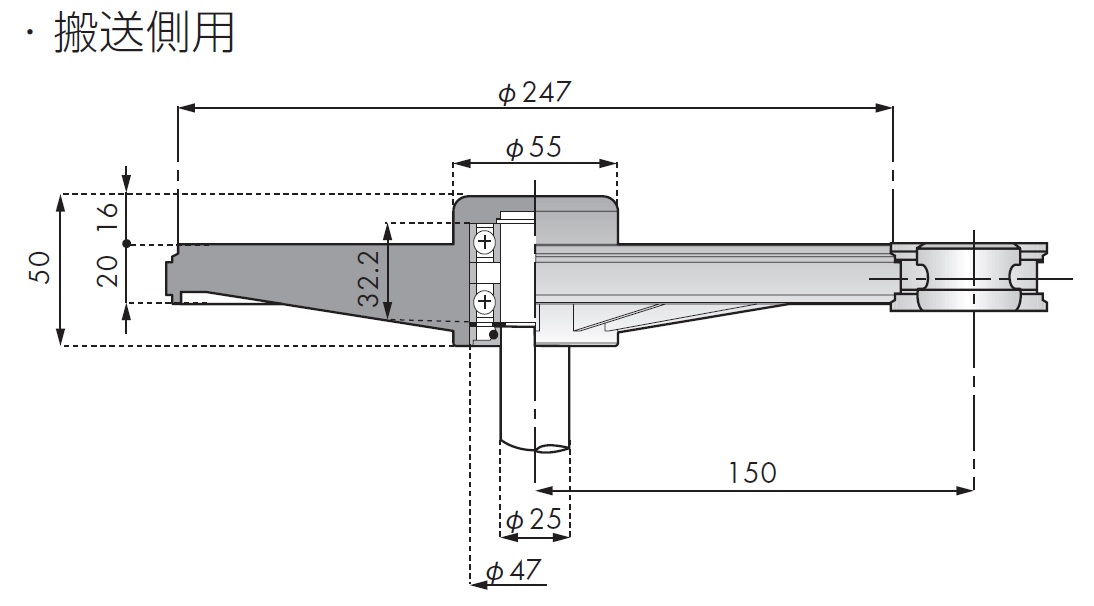

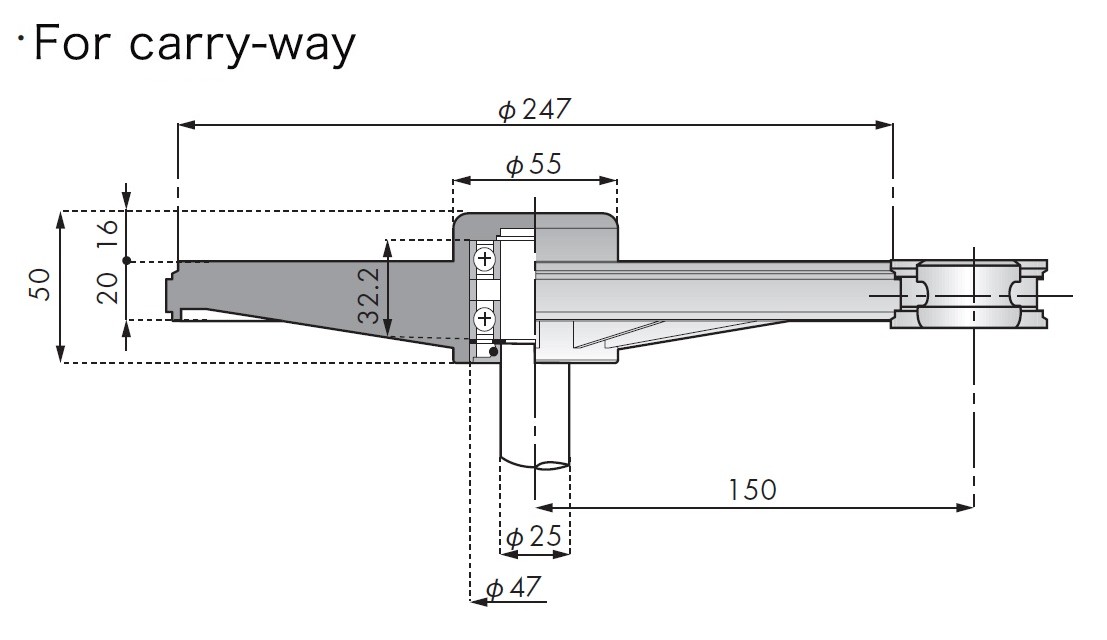

PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TPUN535-LH, TPUN550-LH
Major Specifications
| Applicable | For transport side | For the return side |
|---|---|---|
| Model number | TP-C12723T-CD | TP-C12725T-CD |
| Material | reinforced polyamide | |
| Appearance color | black | |
| ベアリング材質 | スチール | |
| Chain side bending radius mm | R150 | |
| DXF Drawing data | DXF | DXF |
| Standard price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
注記
1.搬送側用と帰り側用はシャフト貫通の可否のみが異なります。
2.ベアリング・シールリング等はディスク本体とバラでの出荷となります。
