Major Specifications of Top chain accessories

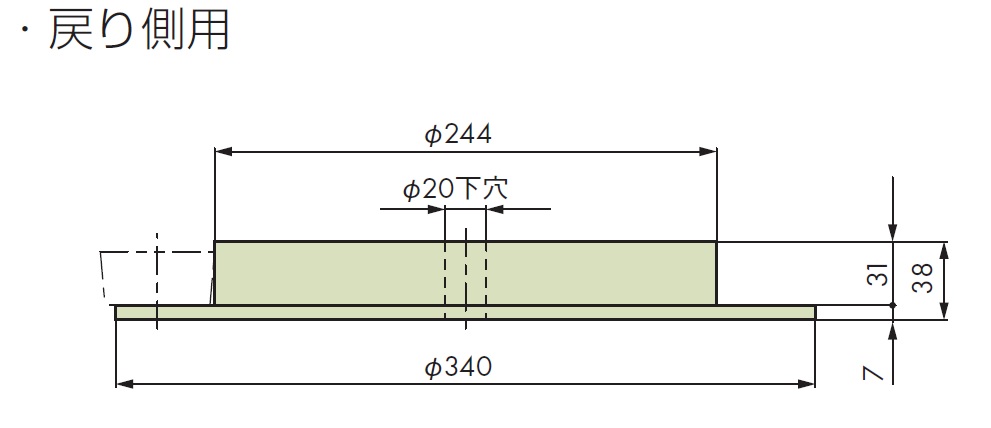

TP-50UNS専用ターンディスク：TP-50UNST2
[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TP-50UNS
Major Specifications
| Processing method | machining | |
|---|---|---|
| Applicable | sender | Return-way |
| Model number | TP-50UNST1 | TP-50UNST2 |
| Material | 高密度ポリエチレン | |
| Material Grade | 84-100 | |
| ベアリング形番 | - | |
| Bearing Material | - | |
| スペーサー材質 | - | |
| Appearance color | white | |
| DXF Drawing data | DXF | DXF |
| 標準価格 | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
注記
1.ご注文生産品です。
2.機械加工品のベアリング付きも打合せにより製作いたします。
3.TP-TWD、TP-TWRは2019年12月末日受注分をもって販売終了しました。 (2020.01.01)
