Major Specifications of Top chain accessories

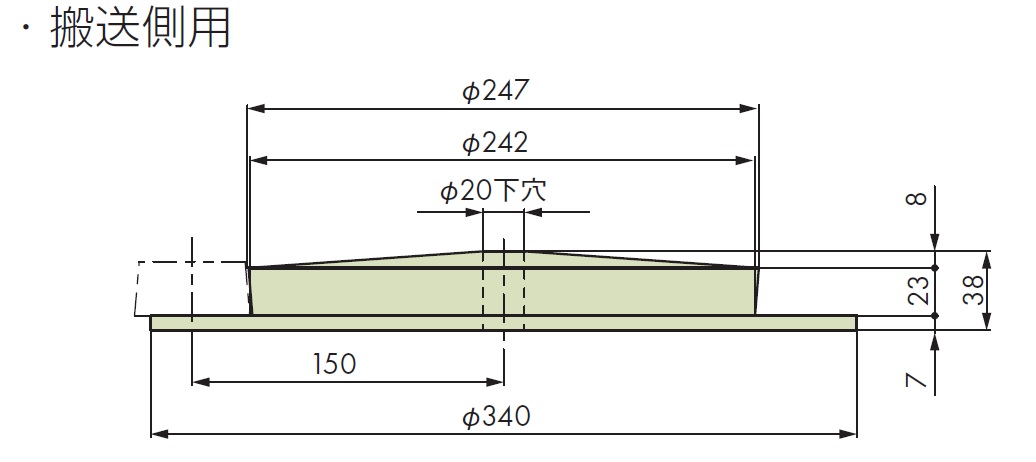

Turn disc for TP-50UNS: TP-50UNST1
[Click to enlarge]
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TP-50UNS
Major Specifications
| Processing method | machining | |
|---|---|---|
| Applicable | sender | return-way |
| Model number | TP-50UNST1 | TP-50UNST2 |
| Material | High-density polyethylene | |
| Material Grade | 84-100 | |
| Bearing model number | - | |
| Bearing Material | - | |
| Spacer Material | - | |
| Appearance color | white | |
| DXF Drawing data | DXF | DXF |
| Price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. This product is made to order.
2. We can also manufacture machined products with bearings after consultation.
3.Sales of TP-TWD and TP-TWR have ended with orders received by the end of December 2019. (2020.01.01)
