Frame Major Specifications
RF2030VRP-R1K
[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
| ※ | 3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding 3D CAD data and PARTcommunity, please contact CADENAS WEB2CAD. For contact information for CADENAS WEB2CAD Inc., please check here (external site). |
Catalogs and Instruction Manuals
Major Specifications

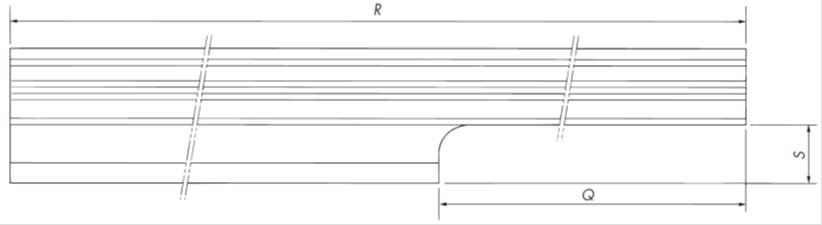

| Frame type | Material | Standard length | Approximate mass | Size | |||
|---|---|---|---|---|---|---|---|
| Q | R | S | |||||
| Aluminum frame for drive unit | aluminum | 1m | 1.3kg/m | In stock | 210 | 1m | 25 |
*The cross-sectional shape, dimensions and material are the same as those of the intermediate frame.
標準価格・納期
For prices and delivery, please contact us below.
