Cam Clutch Box Eco Operation 3

■Boiler blowers (IDF, GMF, GRF)

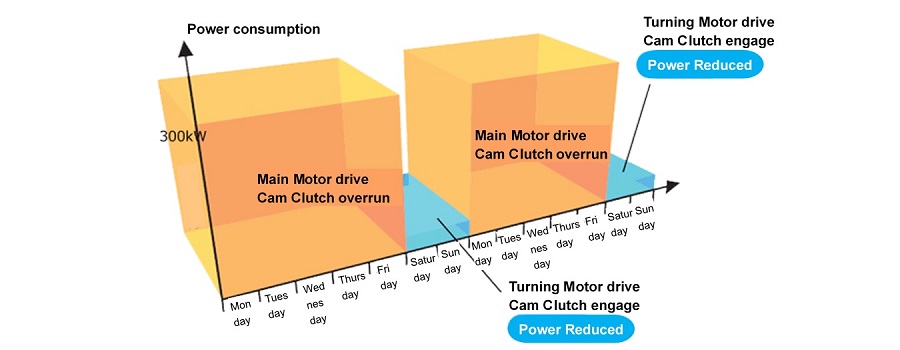

Reduced power consumption by switching motor operation as needed

Reduced power consumption through motor switching operation

(1) When the boiler starts up, the motor drives the pump. At this time, the cam clutch runs idle.

(2) The recovery pump is rotated by the residual water pressure, and when the rotation speed exceeds the pump rotation speed, the cam clutch automatically engages, reducing the load on the motor.
