Cam Clutch Box Eco Operation 2

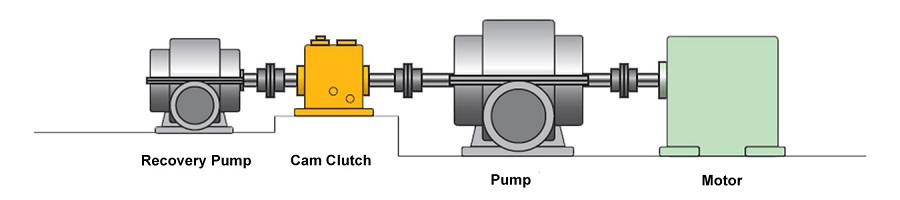

■ Boiler feed pump
The residual pressure water pumped out by the pump rotates the recovery pump, and the resulting power can reduce the motor's power consumption by half.
Power recovery for boiler feed pumps using residual pressure water
(1) When the boiler starts up, the motor drives the pump. At this time, the cam clutch runs idle.
(2) The recovery pump is rotated by the residual water pressure, and when the rotation speed exceeds the pump rotation speed, the cam clutch automatically engages, reducing the load on the motor.

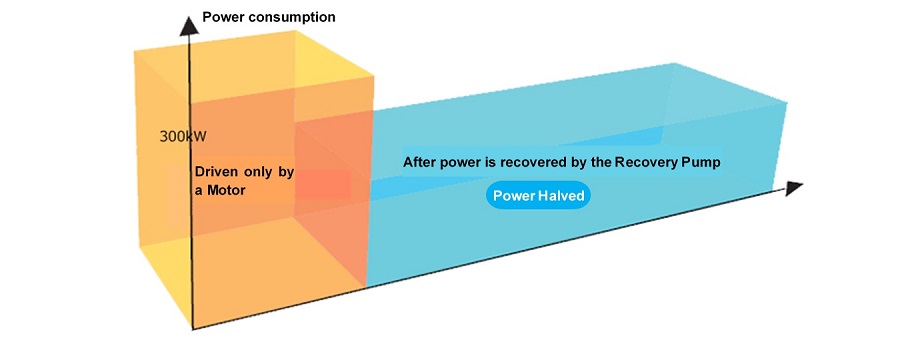

eco-friendly effect
Depending on the conditions of use, power consumption can be reduced by approximately 50%.
