Stainless steel Drive chain SS Series Major Specifications
RS11-SS-1
[Click to enlarge]
*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
| ※ | CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding CAD data and PARTcommunity, please contact CADENAS WEB2CAD. For inquiries regarding Cadence CADENAS WEB2CAD Inc., please check here (external site). |
Catalogs and Instruction Manuals
Major Specifications
| Size & Specifications & No. of strands |
No. of strands | Maximum allowable load kN {kgf} |
Approximate Mass kg/m |
No. of links
per unit |
|---|---|---|---|---|
| RS11-SS-1 | 1 | 0.05{5} | 0.052 | 134 |
Note
1. It is bushed chain. There are no rollers.
2. The connecting link is spring clip-shaped and has two-sided fastening rivets.
3. There are no offset links, so please use an even number of links.
4. Unit is in stock.

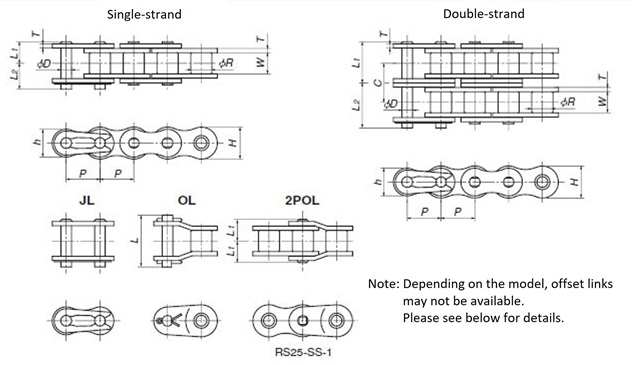

Main dimensions mm
| Pitch P |
Bush Diameter R |
Inner link width W |
Plate | Pin | ||||
|---|---|---|---|---|---|---|---|---|
| T | H | h | D | L1 | L2 | |||
| 3.7465 | 2.285 | 1.83 | 0.38 | 3.5 | 3.5 | 1.57 | 2.275 | 3.165 |
Applicable connecting link
| Type | Connecting Link |
|---|---|
| Model number | RS11-SS-1-MCJL |
| 標準価格 | Please contact us |
| Delivery | Please contact us |
