RSローラチェーン 主要諸元
RS15-1
[Click to enlarge]

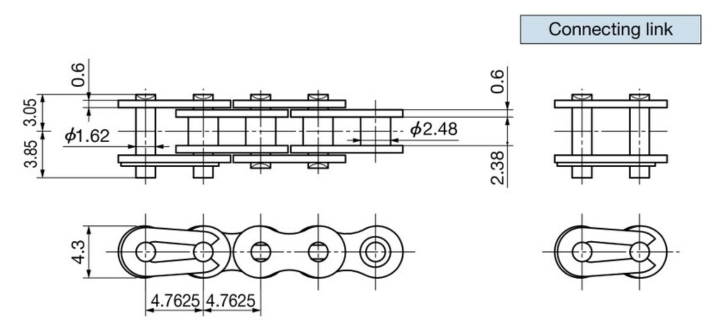

*The above is an image for illustrative purposes only. Please be sure to check the details below and in the drawings for accurate information.
| ※ | CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries regarding CAD data and PARTcommunity, please contact Cadenas Web-to-CAD. For inquiries regarding Cadence Web-to-CAD Co., Ltd., please check here (external site). |
Catalogs and Instruction Manuals
Major Specifications
| Size & No. of strands |
No. of strands | Minimum tensile strength kN {kgf} |
Average tensile strength kN {kgf} |
Maximum allowable tension kN {kgf} |
Estimated mass kg/m |
No. of links
per unit |
|---|---|---|---|---|---|---|
| RS15-1 | 1 | 1.77{180} | 2.26{230} | 0.31{32} | 0.075 | 210 |
注記
1.オフセットリンクはありませんので、偶数リンクでご使用ください。
2.ブシュチェーンです。ローラはありません。
3.M形継手リンク(JL)をご使用の場合の最大許容張力は0.25kNになります。
4.ユニット在庫品です。
標準価格・納期
| Type | Unit RP type |
|---|---|
| Model number | RS15-1-RP-U |
| 標準価格 | Please contact us |
| Delivery | Please contact us |
Applicable connecting link
| Type | Connecting Link |
|---|---|
| Model number | RS15-1-MCJL |
| 標準価格 | Please contact us |
| Delivery | Please contact us |
Applicable sprocket
| Type | 1A | 1B | 1C | SD (single dual) |
Fit Bore |
Lock S-type |
Lock N-type |
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|
| Basic model number | --- | RS15-1B□T | --- | --- | --- | --- | --- |
| Tooth number range | 11T～35T |
