Cable Carrier (CABLEVEYOR) ​Plastic Series Special Specifications

Circular travel arrangement

  • It can be used to connect cables and hoses to the rotating parts of robots, etc. The structure of circular travel arrangement plastic Cable Carrier (CABLEVEYOR) differs in part from the standard product. The external dimensions are the same as the standard product.
    Please contact us regarding employment.
  • Applicable models: TKP type, TKC type, TK type *TKUA type is also available. Please contact us if you are considering this.

[Click to enlarge]

■ Main body link

The standard part is modified to allow it articulate in both directions.

■ Mounting hardware and brackets

Additional processing is performed on the standard part on either the moving end or the fixed end, allowing it articulate in both directions.
However, depending on the installation layout and format, standard parts may be usable as they are.

Back to top of this page

Specifications and dimensions

■ When the inner drum diameter (ΦD4) is already determined
Inverted R
R1 mm		 Outer drum diameter D1
mm		 D2
mm		 D3
mm		 Peripheral wall height H
mm		 Guide height h
mm		 Maximum travel speed m/min
m/min
TKP35H22特殊形D4/2+25D4+4R+100D4+106D4+100W+252030
TKP45H25特殊形D4/2+30D4+4R+120D4+126D4+120W+403030
TKP58H39特殊形D4/2+35D4+4R+140D4+146D4+140W+505030
TKP68H46特殊形D4/2+40D4+4R+160D4+166D4+160W+555030
TKP62H34特殊形D4/2+40D4+4R+160D4+166D4+160W+555030
TKP90H50特殊形D4/2+50D4+4R+200D4+206D4+200W+605030
TKP125H74特殊形D4/2+65D4+4R+260D4+266D4+260W+705030
■ When the outer drum diameter (ΦD1) is already determined
Inverted R
R1 mm		 Inner drum diameter D4
mm		 D2
mm		 D3
mm		 Peripheral wall height H
mm		 Guide height h
mm		 Maximum travel speed m/min
m/min
TKP35H22特殊形D1/2－2R－25D1－4R－100D1－4R+6D1－4RW+252030
TKP45H25特殊形D1/2－2R－30D1－4R－120D1－4R+6D1－4RW+403030
TKP58H39特殊形D1/2－2R－35D1－4R－140D1－4R+6D1－4RW+505030
TKP68H46特殊形D1/2－2R－40D1－4R－160D1－4R+6D1－4RW+555030
TKP62H34特殊形D1/2－2R－40D1－4R－160D1－4R+6D1－4RW+555030
TKP90H50特殊形D1/2－2R－50D1－4R－200D1－4R+6D1－4RW+605030
TKP125H74特殊形D1/2－2R－65D1－4R－260D1－4R+6D1－4RW+705030
■ Semi-standard product of TKC34H25W130R70
Inverted R
R1 mm		 Outer drum diameter D1
mm		 D2
mm		 D3
mm		 D4
mm		 Peripheral wall height H
mm		 Guide height h
mm		 Maximum travel speed m/min
m/min
TKC34H25W130R70
special form		1706904003942901604040
1406303403342301604040
2057504704643501604040
Back to top of this page

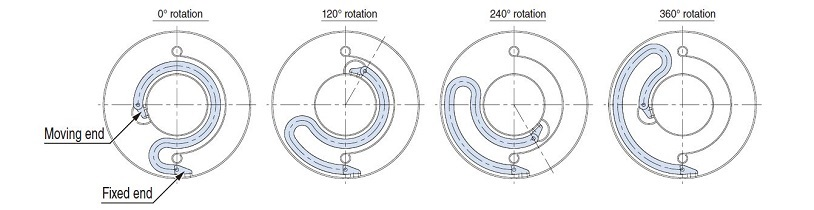

Inner turning trajectory


[Click to enlarge]
Back to top of this page

Outer circumference turning trajectory


[Click to enlarge]
Back to top of this page
