Cable Carrier (CABLEVEYOR) ​Steel Series TKI Type Major Specifications

TKI

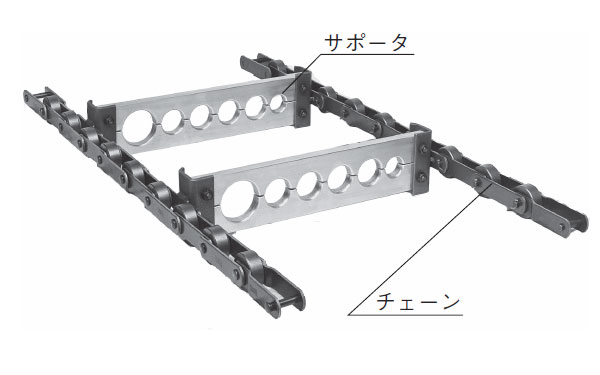

Structure


[Click to enlarge]
PDF outline drawing

Please contact us

DXF Drawing data

Please contact us
(Click here for a list of DXF data)

Catalogs and Instruction Manuals

Basic specifications

Suitable for high frequency and Long travel length.

Maximum travel length m 100
Maximum cable/hose outer diameter mm 80
Maximum cable/hose mass kg/m 100
Maximum travel speed m/min 120
Operating temperature range -10ﾟC～150ﾟC
Body material steel
Supporter material aluminum

Note
1. Selection and ordering of this product requires consultation with our company. Please contact us.

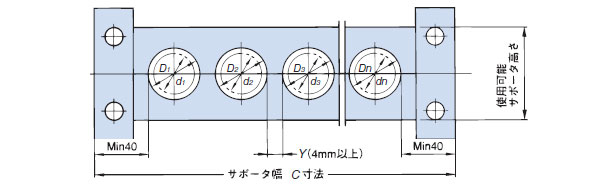

Supporter dimensions


[Click to enlarge]

Relationship between standard supporter height and cable/hose outer diameter Unit: mm
Supporter height Supporter hole maximum diameter Cables and Hoses
Maximum outer diameter
65 50 46
75 60 55
90 66 60
110 88 80
Relationship between standard supporter width (C) and bending radius (R) Unit: mm
bending radius R Supporter height
Range of use		 Standard supporter width
(50mm interval) C
175 65～110 100～500
200 100～600
250 150～700
300 150～900
350 200～1000
400 200～1200
500 250～1500

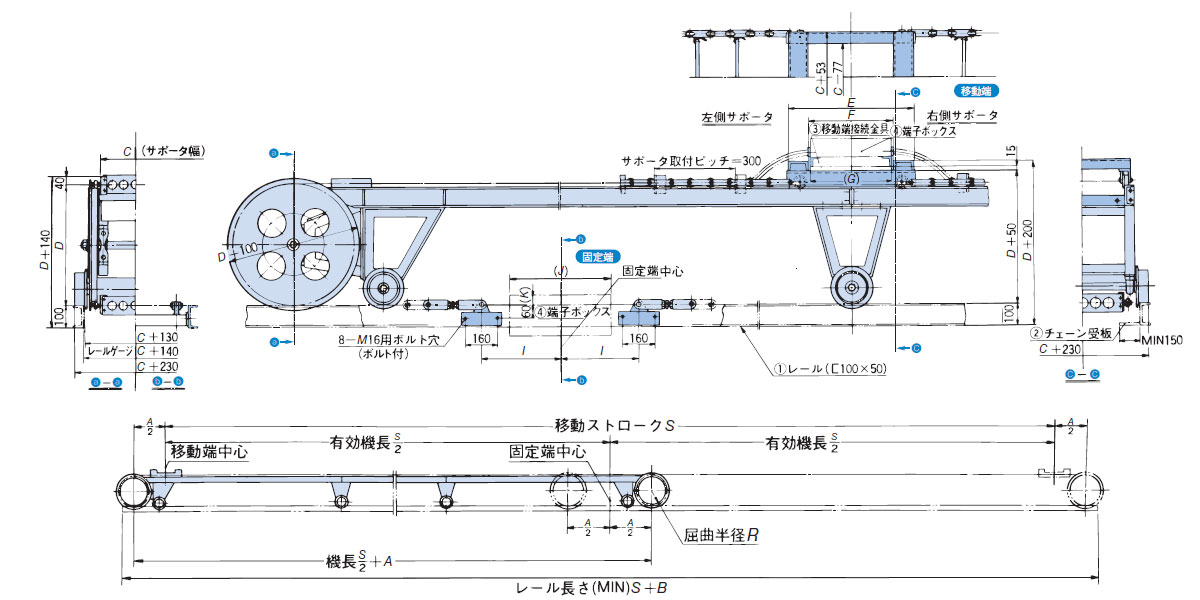

Dimensions


[Click to enlarge]

Note
- The standard paint color is Munsell symbol 2.5B6/2.
- The supporters on both the moving end and fixed end act as clamp supporters to clamp cables and hoses, so please let us know the actual outer diameter.
*Customer installation scope: ① Rail ② Chain receiving plate ③ Moving end connecting fitting ④ Terminal box

Unit: mm
bending radius R Drum diameter D A B E F (G) I (J) (K)
175 350 1800 2000 620 420 MAX
410		 390 MAX
500		 MAX
40
200 400
250 500
300 600
350 700
400 800 2000 2500 820 620 MAX
610		 440 MAX
600		 MAX
60
500 1000
