Cable Carrier (CABLEVEYOR) Accessories Cable and Block Clamps Major Specifications

Catalogs and Instruction Manuals

When using Cable Carrier (CABLEVEYOR) to support and guide cables and hoses, if both ends of the cable or hose are not secured (clamped), there may be a misalignment between Cable Carrier (CABLEVEYOR) and the cable or hose during movement, which could result in damage to the cable or hose due to sliding wear.
Tsubaki cable and Block Clamps allow you to clamp cables and hoses easily and securely, preventing damage to the cables and hoses.
Please select the most suitable cable/ Block Clamps according to the outer diameter of the cable/hose, wiring, and placement.

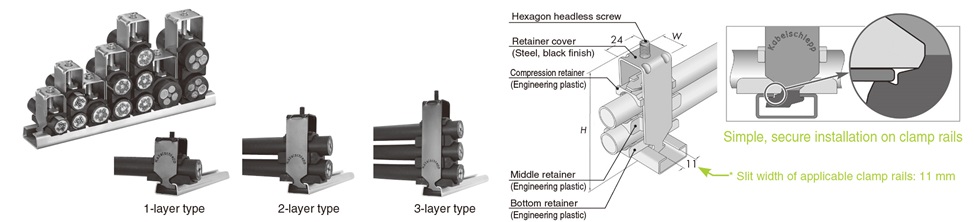

LineFix strain relief


[Click to enlarge]

More Information

type Model number Applicable cable outer diameter Φ mm W
mm		 H maximum
mm		 Standard price Delivery DXF Drawing and 3D CAD data
Minimum Maximum
1 stage CL-LF12-16121655Please contact usPlease contact us DXF・3DCAD
CL-LF14-112141852Please contact usPlease contact us DXF・3DCAD
CL-LF16-114162054Please contact usPlease contact us DXF・3DCAD
CL-LF18-116182256Please contact usPlease contact us DXF・3DCAD
CL-LF20-118202459Please contact usPlease contact us DXF・3DCAD
CL-LF22-120222661Please contact usPlease contact us DXF・3DCAD
CL-LF26-122263070Please contact usPlease contact us DXF・3DCAD
CL-LF30-126303474Please contact usPlease contact us DXF・3DCAD
CL-LF34-130343878Please contact usPlease contact us DXF・3DCAD
CL-LF38-134384282Please contact usPlease contact us DXF・3DCAD
CL-LF42-138424691Please contact usPlease contact us DXF・3DCAD
2 tiers CL-LF12-26121673Please contact usPlease contact us DXF・3DCAD
CL-LF14-212141874Please contact usPlease contact us DXF・3DCAD
CL-LF16-214162082Please contact usPlease contact us DXF・3DCAD
CL-LF18-216182286Please contact usPlease contact us DXF・3DCAD
CL-LF20-218202491Please contact usPlease contact us DXF・3DCAD
CL-LF22-220222695Please contact usPlease contact us DXF・3DCAD
CL-LF26-2222630108Please contact usPlease contact us DXF・3DCAD
CL-LF30-2263034121Please contact usPlease contact us DXF・3DCAD
CL-LF34-2303438129Please contact usPlease contact us DXF・3DCAD
3 steps CL-LF12-36121698Please contact usPlease contact us DXF・3DCAD
CL-LF14-312141898Please contact usPlease contact us DXF・3DCAD
CL-LF16-3141620105Please contact usPlease contact us DXF・3DCAD
CL-LF18-3161822111Please contact usPlease contact us DXF・3DCAD
CL-LF20-3182024118Please contact usPlease contact us DXF・3DCAD
CL-LF22-3202226130Please contact usPlease contact us DXF・3DCAD

Note
1.Material: Steel
2. Stainless steel products are also available. Please contact us for details.

strain relief combs strain relief

Type A


[Click to enlarge]

More Information

Model number b1
mm		 b4
mm		 Number of teeth Standard price Delivery DXF Drawing and 3D CAD data
CL-COMB-A-5449213Please contact usPlease contact us DXF・3DCAD
CL-COMB-A-7974465Please contact usPlease contact us DXF・3DCAD
CL-COMB-A-10499717Please contact usPlease contact us DXF・3DCAD
CL-COMB-A-129124969Please contact usPlease contact us DXF・3DCAD
CL-COMB-A-15414912111Please contact usPlease contact us DXF・3DCAD
CL-COMB-A-17917914613Please contact usPlease contact us DXF・3DCAD

Material: Engineering plastic


Type B


[Click to enlarge]

More Information

Model number b1
mm		 b2
mm		 b3
mm		 b4
mm		 t
mm		 Number of teeth Standard price Delivery DXF Drawing and 3D CAD data
CL-COMB-B-5043.25314-73Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-65605314-74Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-7063.253-1574Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-9083.253-3576Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-959570-2076Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-115108.253-6078Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-12012070-4078Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-14013553-75710Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-14214253-875.510Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-14514570-65710Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-16516053-100712Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-17017070-90712Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-19519570-115714Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-22022070-140716Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-24524570-165718Please contact usPlease contact us DXF・3DCAD
CL-COMB-B-27027070-190720Please contact usPlease contact us DXF・3DCAD

Material: Engineering plastic


ZL type

1-tier type


[Click to enlarge]

More Information

Model number A
mm		 B
mm		 C
mm		 DB
mm		 Number of teeth Standard price Delivery Shape Data
ZL3938.519.59103 Please contact usPlease contact us DXF
ZL6059.543.5974 Please contact usPlease contact us DXF
ZL8786.56899.56 Please contact usPlease contact us DXF
ZL103102.58499.57 Please contact usPlease contact us DXF
ZL121121102.599.58 Please contact usPlease contact us DXF
ZL140139.512199.59 Please contact usPlease contact us DXF

Material: Engineering plastic

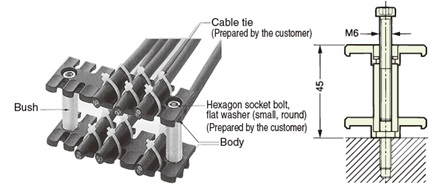

Two-tier type


[Click to enlarge]

More Information

Model number A
mm		 B
mm		 C
mm		 DB
mm		 Number of teeth Standard price Delivery Shape Data
ZL39-238.519.59106 Please contact usPlease contact us DXF
ZL60-259.543.5978 Please contact usPlease contact us DXF
ZL87-286.56899.512 Please contact usPlease contact us DXF
ZL103-2102.58499.514 Please contact usPlease contact us DXF
ZL121-2121102.599.516 Please contact usPlease contact us DXF
ZL140-2139.512199.518 Please contact usPlease contact us DXF

Bush material: Steel (zinc plated)

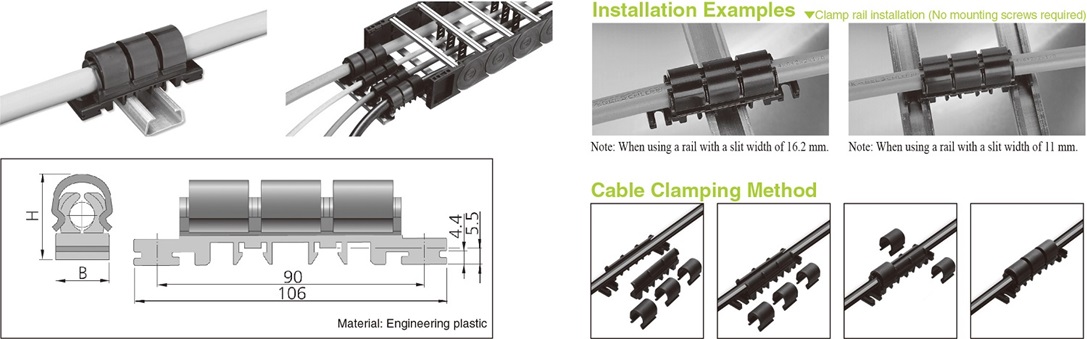

SZL type strain relief


[Click to enlarge]

More Information

Features
・Easy installation without tools
-Fixed without screws or cable ties
- The contact surface with the cable is large, reducing stress on the cable and ensuring secure fixation.

Model number Applicable cable outer diameter Φ
mm		 B
mm		 H
mm		 Standard price Delivery DXF Drawing and 3D CAD data
Minimum Maximum Minimum Maximum
CL-SZL-858161628 Please contact usPlease contact us DXF・3DCAD
CL-SZL-10810.5202030 Please contact usPlease contact us DXF・3DCAD
CL-SZL-1410.514.5232635 Please contact usPlease contact us DXF・3DCAD
CL-SZL-1814.518253240 Please contact usPlease contact us DXF・3DCAD
CL-SZL-221822303644 Please contact usPlease contact us DXF・3DCAD
CL-SZL-272227343950 Please contact usPlease contact us DXF・3DCAD
CL-SZL-322732394456 Please contact usPlease contact us DXF・3DCAD

Material: Engineering plastic

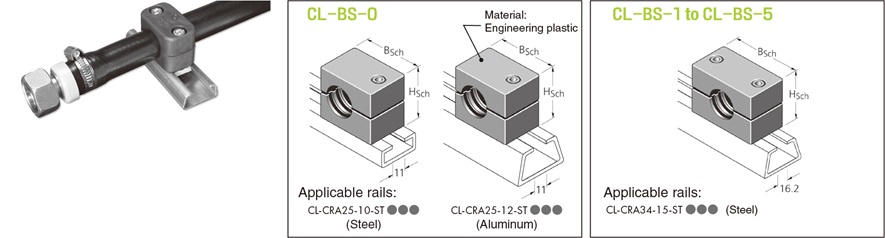

Block Clamps


[Click to enlarge]

More Information

type Model number Applicable cable outer diameter Φ
mm		 Hsch
mm		 Bsch
mm		 Number of bolts Standard price Delivery
Minimum Maximum
CL-BS-0CL-BS-0-066727281Please contact usPlease contact us
CL-BS-0-0778Please contact usPlease contact us
CL-BS-0-0889Please contact usPlease contact us
CL-BS-0-09910Please contact usPlease contact us
CL-BS-0-101012Please contact usPlease contact us
CL-BS-1CL-BS-1-066727372Please contact usPlease contact us
CL-BS-1-0778Please contact usPlease contact us
CL-BS-1-0889Please contact usPlease contact us
CL-BS-1-09910Please contact usPlease contact us
CL-BS-1-101011Please contact usPlease contact us
CL-BS-1-121214Please contact usPlease contact us
CL-BS-2CL-BS-2-14141633422Please contact usPlease contact us
CL-BS-2-161618Please contact usPlease contact us
CL-BS-2-181820Please contact usPlease contact us
CL-BS-3CL-BS-3-20202236502Please contact usPlease contact us
CL-BS-3-222223Please contact usPlease contact us
CL-BS-3-232325Please contact usPlease contact us
CL-BS-3-252527Please contact usPlease contact us
CL-BS-3-27273042592Please contact usPlease contact us
CL-BS-3-303034Please contact usPlease contact us
CL-BS-4CL-BS-4-32323442592Please contact usPlease contact us
CL-BS-4-34343658712Please contact usPlease contact us
CL-BS-4-353537Please contact usPlease contact us
CL-BS-4-383840Please contact usPlease contact us
CL-BS-4-404042Please contact usPlease contact us
CL-BS-4-424244Please contact usPlease contact us
CL-BS-5CL-BS-5-45454866862Please contact usPlease contact us
CL-BS-5-484851Please contact usPlease contact us
CL-BS-5-515154Please contact usPlease contact us

Dedicated bolts and nuts are included (clamp rails must be ordered separately).

Clamp rail

Dimensions Model number Length mm Slit width mm Material Standard price Delivery DXF Drawing and 3D CAD data

[Click to enlarge]
CL-CRA25-10-ST-50050011 steel Please contact usPlease contact us DXF・3DCAD
CL-CRA25-10-ST-10001000Please contact usPlease contact us DXF・3DCAD

[Click to enlarge]
CL-CRA25-12-ST-500500Please contact usPlease contact us DXF・3DCAD
CL-CRA25-12-ST-10001000Please contact usPlease contact us DXF・3DCAD

[Click to enlarge]
CL-CRA34-15-ST-50050016.2 Please contact usPlease contact us DXF・3DCAD
CL-CRA34-15-ST-10001000Please contact usPlease contact us DXF・3DCAD

Any length can be accommodated (made to order).
